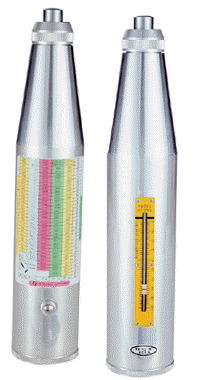

The ECTHA1000 mechanical rebound hammer is the product of direct experimentation on different types of concrete. Used appropriately and following the correct procedures, this is a valuable instrument for testing and evaluating the quality of concrete, ensuring totally reliable results. Made in Italy
ECTHA 1000 research and innovation:
The ECTHA1000 mechanical rebound hammer is the product of direct experimentation on different types of concrete. Used appropriately and following the correct procedures, this is a valuable instrument for testing and evaluating the quality of concrete, ensuring totally reliable results.
what the ECTHA 1000 concrete rebound hammer can be used for:
- for checking concrete uniformity in different parts of a structure following events such as fire, explosion, overloading, earthquake, etc.
- for evaluating, against calibration curves, the quality of existing and freshly cast concrete on site
- for evaluating variations in concrete quality within time frames generally stipulated by contract terms
ECTHA 1000 experimentation:
The exclusive use of reliable and meticulously selected components, decades of experience in the manufacturing of NDT instru¬ments, functional, innovative design and ongoing scientific research conducted by our NDT centre in close collaboration with the Marche Region Polytechnic University have enabled us to develop and create this new generation of instruments.
EUROSIT, a firmly established name in the civil engineering sector, manufacturing accessories for topography and measurement instruments for non-destructive testing, has established its own in-house NDT centre, to develop and improve instruments used for non-destructive testing in civil engineering.
As a result of the substantial technological advancements in recent years in concrete manufacture, the way in which data from non-destructive testing methods is evaluated has been the subject of critical reconsideration.
In this context, the SOUTHGEOSYSTEMS - NDT - division has decided to revise the tables used to interpret rebound hardness scales, significantly increasing the scope for analysing concretes to a range from a minimum resistance of 5 N/mm2 to values as high as 120 N/mm2, which are now achievable with the ingredients and mixes available today.
Our research has focused on modifying our existing N type test hammer, defining new, more reliable correlation curves and devis¬ing the new SonReb procedure.
We have plotted these new curves through the non-destructive (identifying the rebound hardness numbers and velocity of ultra-sound impulse propagation) and destructive (press crushing) testing of 50 cubic test pieces (200 mm per side) for 20 distinct classes of agglomerate, for a total of 1000 samples.
The ECTHA 1000 mechanical test hammer is the result of this direct experimentation on different types of concrete. Used appropriately and following the correct procedures, this is a valuable instrument for testing and evaluating the quality of concrete, ensuring totally reliable results.
7 excellent reasons to choose ECTHA 1000...
- because it comes from a family of instruments developed over a quarter of a century
- because its innovative design is unmatched in its class
- because it is the only tool with its own specific, updated correlation curves
- because it has the widest measuring range suitable for concretes with values from 5-120 N/mm2
- because its design is based on valid and fully documented scientific research
- because it is backed by the support of a state of the art research and development centre for non destructive testing in civil engineering applications
- because it is the only tool with a comprehensive range of functional, intelligent accessories for rapid and direct analysis
Technical specification :
| model: N type mechanical concrete test hammer |
| impact energy: 2,207 Nm |
| limitations: Sp.: > 100mm |
| weight: 1,8 Kg |
| reference standards: UNI EN 12504 n 2 ASTM C 805 |
ECTHA 1000 is a guarantee of measurement reliability and accuracy, with minimal scatter¬ing of measured data ensured by high preci¬sion mechanical components that are me¬ticulously tested and calibrated, according to solid criteria defined over decades of EUSOSIT experience.
SINT 01 TESTING ANVIL
As it is based on a spring mechanism, the ECTHA 1000 test hammer must be calibrated as, after prolonged use, the elastic properties of the springs may change. Additionally, cement dust generated by the impact infiltrates into the instrument and may alter its me-chanical properties. Built in compliance with stan¬dards for weight, dimensions and hardness, the SINT01 anvil is equipped with a handle for easy trans¬portation during on-site analysis.
Anvil testing does not guarantee that different ham-mers will produce identical results in different ranges of the rebound hardness scale.
Description of components :
- instruction manual in six languages
- instruction manual contains correlation curves in MpA and Psl, with explanatory formulas, reference standards, and procedures and limitations for using the rebound hammer
- 50 page notepad with grid pattern for easy recording of the rebound hammer scale values measured
- pencil for recording values and other equipment necessary to draw up the analysis grid
- abrasive lapping wheel for preparing the test surface
- measurement template to aid drawing up the measurement grid once the test surface has been identified
- spray bottle containing phenolphthalein for carbonation testing
- safety cap to be screwed onto the end of instrument to prevent accidental opening during transport
- padded case with shoulder strap and pockets to carry the instrument together with all accessories
Standard accessories :
Instruction manual with MpA - Psi curves
- Notepad for recording scale values
- Pencil
- Lapping wheel with case
- 25 mm long measuring position template
- 30mm long measuring position template
- Phenolphthalein spray bottle
- Phenolphthalein instruction label
- Padded case with shoulder strap
- Calibrating and QC certificate
- Safety cap for transport
