Optical Collimator System KCS-3 has been proved to be reliable and indispensable for checking Optical Theodolites, Electronic Theodolites and Total Stations.
Model
KCS-3
Focal Length
440mm
Effective Aperture
40mm
Field of View
2°30'
Min. Graduation
30"
Shortest Stadia
=2m
Angle between two Tubes
30°±15'
Sensitivity of Plate Bubble
10"/2mm
Graduation Range
HZ: ±30'; V: ±30'
Operating Height
170mm - 240mm
Voltage
Input: 110 or 220V; Output: 6V
Collimator Dimensions
Collimator Net Weight
90kgs
Packing Details
1set per wooden Box; 130kgs per wooden Box; Dimensions per wooden Box: 0.50CBM

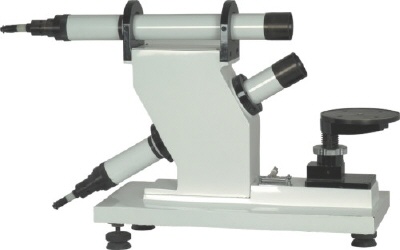

Optical Collimator System KCS-2 has been proved to be reliable and indispensable for checking Optical Theodolites, Electronic Theodolites and Total Stations.
KCS-2
550mm
55mm
2 30'
30 ±15'
20"/2mm
170mm~240mm
93cmx30cmx55cm
85kgs
Adjustable height of instrument
85~285mm
Shift of instrument attaching mount
±2.5mm
Vertical angle adjustment
±5 (for the instrument post alone)
1set per wooden Box; 110kgs per wooden Box;Dimensions per wooden Box: 0.35CBM (106cm
