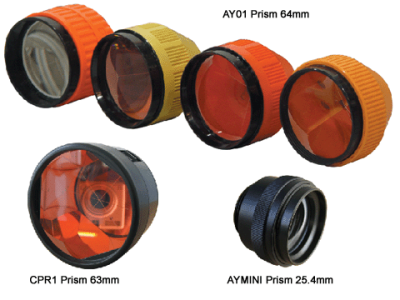

Prism & Systems Prism
!

Prism AYMINI

Weight: kg
!
Zoom
  •  AY MINI Prism 25.4mm

CPR1 Prism Leica 63mm

Weight: kg
!
Zoom

CPR1 Prism Leica 63mm





AY01 Prism 64mm

Weight: kg
!
Zoom

AY01 Universal Prism 64mm

Prism Refleshing

Weight: kg
!
42_0
Prism Refleshing

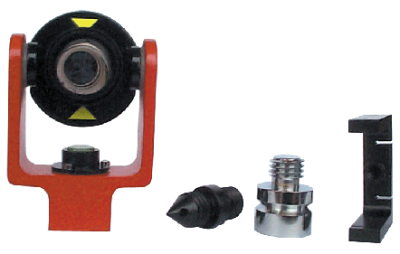

MINIPRISMA 102

Weight: kg
!
Zoom

Mini single 25.4mm Eclipse Prism with an adjustable offset of 0mm or -30mm. Comes with a Mini Prism holder, point and bag.

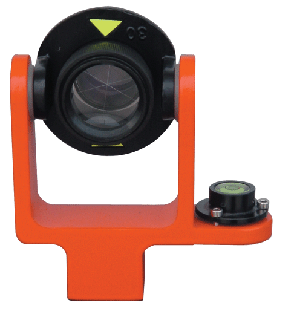

MINIPRISMA 101

Weight: kg
!
Zoom

Offset 0mm or -30mm with soft bag.

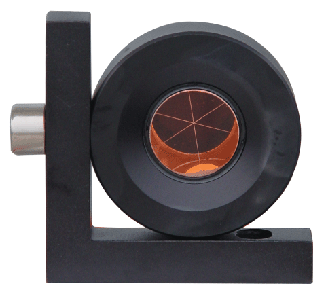

MINIPRISMA 105

Weight: kg
!
Zoom

Prism offset 0mm for Leica system,with soft bag.

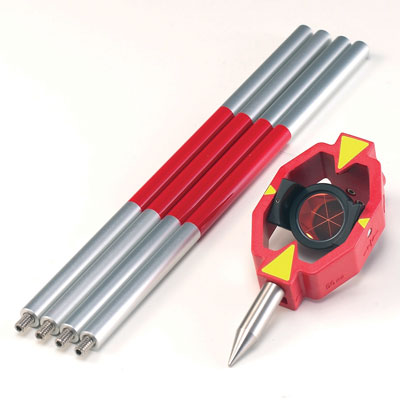

Mini Prism Set

Weight: kg
!
Zoom

These prisms are manufactured from high-quality optical glass which is worked to strict specifications. All reflective surfaces are provided with a resistant coating so that the reflectivity is not adversely affected by dirt or condensation

Conveniently storable in the instrument container, Mini Prisms offer a high positional accuracy due to their small size. The GMP111 has a built-in levelling bubble and is supplied with an attachable spike. With this arrangement a point can be measured with very high precision

Miniprisma Set YR-9C

Weight: kg
!
Zoom

Miniprisma YR-9C, Mini single 20mm Eclipse Prism with an adjustable offset of 0mm or -30mm. Comes with a Mini Prism holder, point and bag

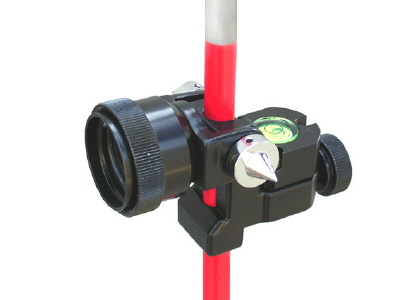

PRISM Single

Weight: kg
!
Zoom

Prism offset 0mm or -30mm whit Holder And Target

Prism for LEICA

Weight: kg
!
Zoom

Prism offset 34mm for LEICA system

Prism 360

Weight: kg
!
Zoom

Mount on tribrach or pole,Measuring from any direction
Land and Hydro survey
Range: 1200m
Copper coated prism
Bayonet Leica or 5/8" titting
Increased productivity
Reduced labour cost
Eliminate manual repositioning of prism

This reflector is recommended for all robotic work performed with a survey pole. The rubber mountings on the top and bottom of the prisms provide protection if the pole falls over. The prism is supplied in a padded case for safe transportation.
The Prism 360 has an overall pointing accuracy of 5mm. However, when aiming directly at one of the three prisms, indicated by yellow arrows, an accuracy of better than 2mm can be achieved

System Prism Universal

Weight: kg
!
Zoom

System Prism Universal include prism-holder, target, 64mm prism, tribrach,  adapter, Plastic box

System Prism Topcon

Weight: kg
!
Zoom

System Prism Topcon include  prism-holder,  target, 64mm prism,  tribrach, adapter, Plastic box

System Prism Leica

Weight: kg
!
Zoom

System Prism Leica include   prism-holder,   target, 63mm prism,   tribrach,   adapter, Plastic  box

Target 3x3

Only
Weight: kg
!
Zoom

Target 3x3

Target 6x6

Only
Weight: kg
!
Zoom

Target 6x6

Target 10 x10

Weight: kg
!
Target 10 x 10

Target Con Soporte

Weight: kg
!
Zoom
Target Con Soporte 6x6, for Leica or universal 5/8
