Total Station KOLIDA

Kolida KTS Total Station

Total Station Kolida
!

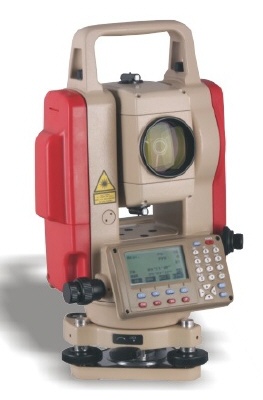

Total Station KOLIDA KTS 440 L SERIES

From
KTS440-L
Weight: kg
!

The KTS-440 L series Total Stations are versatile with complete on-board applications. The internal memory is available up to 24000 points. And with the newly-designed numeric & alphabetic keypad, such Total Stations would definitely offer you total relaxation during operation

ELECTRONIC TOTAL STATION KOLIDA KTS 440 L SERIES

MODEL

KTS-442 L

KTS-445 L

Memory

24000 P.

24000 P.

Telescope




Erect

Magnification

30×

Objective Aperture

45mm (EDM: 50mm)

Tube Length

154mm

Resolution Power

4"

Field of View

1°30'

Shortest Focusing Distance

1m

Resolving Power

3"

Angle Measure

Accuracy (DIN18723)

2"

5"

Reading System

Absolute continuous

Detecting Method (HZ/V Angle)

Dual

Circles (HZ/V)

Ø79mm

Min. Reading

0,1" or 1" or 5" or 10"

Unit

360°/400Gon/6400mil selectable

Distance Measure (under normal weather condition)

with Single Prism

5000m

5000m

Accuracy

±(2mm+2ppm×D)

Maxi/Min. Count

Max: 999999.999m; Min: 1mm

Distance Unit

M or Ft selectable

Measuring Time

1"-Single Shot; 0,5"-Repeated;0,1"-Track

Circular/Plate Bubbles

Circular: 8'/2mm; Plate: 30"/2mm

Atmospheric Correction

Temperature

°C or °F

Air Pressure

hPa/mmHg/inHg

Atmospheric Deflection & Earth Curvature

K=0.14/0.20/0 selectable

Prism Constance

0mm/30mm

Optical Plummet


Erect

Magnification

Field of View

Focusing Range

0.5m ~ ∞

Auto Compensator

System

vertical Axis Liquid Electronic

Working Range

±3"

Accuracy

3'

Display

LCD: 2-sided, 4-lines (illuminated Panels)

Data Port (Interface)

RS-232C

Power Supply

Battery KB-20

Rechargeable Ni-H; Output: DC 6V

Operating Time

10 Hrs (wit big battery: NB-20A)

Charger KC20

220V or 110V, 50HZ

Ambient Temperature

-20°C ~ +45° C

Tribrach

Detachable

Note: Any updating may occur without prior notice

Total Station KOLIDA KTS440 LC SERIES

From
KTS440-LC
Weight: kg
!
Zoom

The Kolida KTS-440-LC Series. Total Stations are versatile with complete on-board applications. The internal memory is available up to 24,000 points,  and with the newly-designed numeric & alphabetic keypad, such Total Stations would definitely offer you total relaxation during operation. Micro SD 2 Gb and Cable miniUsb

ELECTRONIC TOTAL STATION KOLIDA KTS 440 LC SERIES

Model

KTS-442 LC

KTS-445 LC

internal Memory  (external MicroSD 2GB)

24000 P.

24000 P.

Telescope




Erect

Magnification

30×

Objective Aperture

45mm (EDM: 50mm)

Tube Length

154mm

Resolution Power

4"

Field of View

1°30'

Shortest Focusing Distance

1m

Resolving Power

                           3"

Angle Measure

Accuracy (DIN18723)

              2"

               5"

Reading System

Absolite continuous

Detecting Method (HZ/V Angle)

Dual

Circles (HZ/V)

Ø79mm

Min. Reading

0,1" or 1" or 5" or 10"

Unit

360°/400Gon/6400mil selectable

Distance Measure (under normal weather condition)

with Single Prism

5000m

5000m

with Triple Prisms

8000m

8000m

Accuracy

±(2mm+2ppm×D)

Maxi/Min. Count

Max: 999999.999m; Min: 1mm

Distance Unit

M or Ft selectable

Measuring Time

1"-Single Shot; 0,5"-Repeated;0,1"-Track

Circular/Plate Bubbles

Circular: 8'/2mm; Plate: 30"/2mm

Atmospheric Correction

Temperature

°C or °F

Air Pressure

hPa/mmHg/inHg

Atmospheric Deflection & Earth Curvature

K=0.14/0.20/0 selectable

Prism Constance

0mm/30mm

Optical Plummet   (Laser Plummet Optional)


Erect

Magnification

Field of View

Focusing Range

0.5m ~ ∞

Auto Compensator

System

Dual Axis Liquid Electronic

Working Range

±3"

Accuracy

3'

Display

LCD: 2-sided, 4-lines (illuminated Panels)

Data Port (Interface)

RS-232C

Power Supply

Battery KB-20

Rechargeable Ni-H; Output: DC 6V

Operating Time

10 Hrs (wit big battery: NB-20A)

Charger KC20

220V or 110V, 50HZ

Ambient Temperature

-20°C ~ +45° C

Tribrach

Detachable

Note: Any updating may occur without prior notice

Total Station KOLIDA KTS 440 R SERIES

From
KTS440-R
Weight: kg
!
Zoom

The KOLIDA KTS-440R series ReflectorLess 300 Mt Total Stations are versatile with complete on-board applications. The internal memory is available up to 10000 points. And with the newly-designed numeric & alphabetic keypad, such Total Stations would definitely offer you total relaxation during operation.

ELECTRONIC TOTAL STATION KOLIDA KTS 440 R New Series

Model

KTS-442 R

KTS-445 R

Memory

24000 P.

24000 P.

Telescope




Erect

Magnification

30×

Objective Aperture

45mm (EDM: 50mm)

Tube Length

154mm

Resolution Power

4"

Field of View

1°30'

Shortest Focusing Distance

1m

Resolving Power

                                             3"

Angle Measure

Accuracy (DIN18723)

2"

5"

Reading System

Absolite continuous

Detecting Method (HZ/V Angle)

Dual

Circles (HZ/V)

Ø79mm

Min. Reading

01"/1"/5"/10"

Unit

360°/400Gon/6400mil selectable

Distance Measure (under normal weather condition)

ReflectorLess

                  300m                  300m

with Single Prism

5000m

5000m

Accuracy

                 ±(2mm+2ppm×D)

Maxi/Min. Count

Max: 999999.999m; Min: 1mm

Distance Unit

M or Ft selectable

Measuring Time

1"-Single Shot; 0,5"-Repeated; 0,1"-Tracking

Circular/Plate Bubbles

Circular: 8'/2mm; Plate: 30"/2mm

Atmospheric Correction

Temperature

°C or °F

Air Pressure

hPa/mmHg/inHg

Atmospheric Deflection & Earth Curvature

K=0.14/0.20/0 selectable

Prism Constance

0mm/30mm

Optical Plummet


Erect

Magnification

Field of View

Focusing Range

0.5m ~ ∞

Auto Compensator

System

Dual Axis Liquid Electronic

Working Range

±3"

Accuracy

3'

Display

LCD: 2-sided, 4-lines (illuminated Panels)

Data Port (Interface)

RS-232C

Power Supply

Battery KB-20

Rechargeable Ni-H; Output: DC 6V

Operating Time

3hrs (with small battery: NB-10A) or
8Hrs (wit big battery: NB-20A)

Charger KC20

220V or 110V, 50HZ

Ambient Temperature

-20°C ~ +45° C

Tribrach

Detachable

Standard Accessories

Refer to

Central Thread

5/8”×11

Recommended Tripod

Heavy-duty Tripods

Packing Details

1pc per Carton; 12kgs per Carton;
Dimensions per Carton: 0.06CBM (50cm ×30cm ×40cm)

Total Station KOLIDA KTS 440 RC SERIES

From
KTS440-RC
Weight: kg
!

MODEL: KTS 440 RC new series
Product Introduction: Reflectorless
Measures 5 km single prism No Prism 300Mts

absolute Encoding, compensator dual axis

MicroSD, MicroUSB, Laser Plummet (optional)



         ELECTRONIC TOTAL STATION KOLIDA KTS 440 RC SERIES

Model

KTS-442 RC

KTS-445 RC

KTS-447 RC

Telescope




Erect

Magnification

30×

Objective Aperture

45mm (EDM: 50mm)

Tube Length

154mm

Field of View

1°30'

Shortest Focusing Distance

1m

Resolving Power

                                              3"

Angle Measure

Accuracy (DIN18723)

              2"

           5"

         7"

Reading System

                                  Absolute encoding

Detecting Method  Angle

Dual

Circles (HZ/V)

Ø79mm

Min. Reading

0,1"/1"/5"/10"

Unit

360°/400Gon/6400mil selectable

Measuring Range (under normal weather condition)

ReflectorLess

            300m

           300m

         300m

with Single Prism

5000m

5000m

         5000m

Accuracy

with Prism  ±(2mm+2ppm×D) No prism ±(5mm+3ppm×D)

Maxi/Min. Count

Max: 999999.999m; Min: 1mm

Distance Unit

M or Ft selectable

Measuring Time

1"-Single Shot;  0,5"-Tracking

Sensitivity of vials

Plate Vial

                                    30"/2mm

Circular Vial

                                      8'/2mm

Compensation
System                              Dual axis liquid eletric
working range                                            ±3"
accuracy                                              1"
Atmospheric Correction

Temperature

°C or °F

Air Pressure

hPa/mmHg/inHg

Atmospheric Deflection & Earth Curvature

K=0.14/0.20/0 selectable

Prism Constance

0mm/30mm

Optical Plummet


Erect

Magnification

Field of View

Focusing Range

0.5m ~ ∞

Laser plummet                                                                   RCL   Series

Opzional

Data Storage e Communication

Internal Memory

                                  2M/24000 points

External Memory

                                  SD Card (up 2 Gb)

Communication Port

                                  RS232 - Mini Usb

Display
Type

                                       Dual Side

Battery

Power Supply

Rechargeable Ni-H; Output: DC 6V

Operating Time

10Hrs

Voltage

6 V DC

Ambient Temperature

-20°C ~ +45° C

Packing Details

1pc per Carton; 5.8kgs per Carton;
Dimensions per Carton: (160mm ×150mm ×330cm)

Note: Any updating may occur without prior notice



Total Station KOLIDA KTS 470 RC SERIES

From
KTS-470-RC
Weight: kg
!
Product Introduction KTS-470R :

Reflectorless: 350M Measures 5 km single prism, Colorful Touch Screen, Large Screen with Windows Operating System.

Grapic Display, absolute Encoding, 32 Bit...

                                    ELECTRONIC TOTAL STATION KOLIDA KTS 470 RC

Model

KTS-472 RC

KTS-475 RC

KTS-477 RC

Telescope




Erect

Magnification

30×

Objective Aperture

45mm (EDM: 50mm)

Tube Length

154mm

Resolution Power

4"

Field of View

1°30'

Shortest Focusing Distance

1m

Resolving Power

3"

Angle Measure

Accuracy (DIN18723)

2"

5"

7"

Reading System

                                 Absolite continuous

Detecting Method  Angle

Dual Vertical : Dual

Circles (HZ/V)

Ø79mm

Min. Reading

0,1"/1"/5"/7"

Unit

360°/400Gon/6400mil selectable

Distance Measure (under normal weather condition)

ReflectorLess

350m

350m

350m

with Single Prism

5000m

5000m

5000m

Accuracy

±(2mm+2ppm×D)

±(2mm+2ppm×D)

Maxi/Min. Count

Max: 999999.999m; Min: 1mm

Distance Unit

M or Ft selectable

Measuring Time

1"-Single Shot; 0,5"-Repeated; 0,3"-Tracking

Circular/Plate Bubbles

Circular: 8'/2mm; Plate: 30"/2mm

Atmospheric Correction

Temperature

°C or °F

Air Pressure

hPa/mmHg/inHg

Atmospheric Deflection & Earth Curvature

K=0.14/0.20/0 selectable

Prism Constance

0mm/30mm

Optical Plummet


Erect

Magnification

Field of View

Focusing Range

0.5m ~ ∞

Auto Compensator

System

Dual Axis Liquid Electronic

Working Range

±3"

Accuracy

6'

Display

Windows CE (illuminated Panels)

Data Port (Interface)

RS-232C/usb micro/ SD Card up to 4MB

Power Supply

Battery

Rechargeable Ni-H; Output: DC 6V

Operating Time

8Hrs (wit big battery: NB-20A)

Charger

220V or 110V, 50HZ

Ambient Temperature

-20°C ~ +45° C

Tribrach

Detachable

Standard Accessories

Refer to

Packing Details

1pc per Carton; 6.0 kgs per Carton;
Dimensions per Carton: 0.06CBM (50cm ×30cm ×40cm)

Note: Any updating may occur without prior notice





Total Station KOLIDA KTS 582R

Only
KTS580-R
Weight: kg
!
Zoom

Product Introduction KTS-580R :

Reflectorless: 300M Measures 5 km single prism, Colorful Touch Screen, Large Screen with Windows Operating System.

Grapic Display, absolute Encoding, 32 Bit...


ELECTRONIC TOTAL STATION KOLIDA KTS 580 R Series


Model

KTS-582 RL

KTS-585 R

KTS-587 R

Memory

100000 P.

100000 P.

100000 P.

Telescope




Erect

Magnification

30×

Objective Aperture

45mm (EDM: 50mm)

Tube Length

154mm

Resolution Power

4"

Field of View

1°30'

Shortest Focusing Distance

1m

Resolving Power

                                        3"

Angle Measure

Accuracy (DIN18723)

2"

5"

7"

Reading System

                                 Absolite continuous

Detecting Method  Angle

Dual

Circles (HZ/V)

Ø79mm

Min. Reading

0,1"/1"/5"/10"

Unit

360°/400Gon/6400mil selectable

Distance Measure (under normal weather condition)

ReflectorLess

         300m

        300m          300m

with Single Prism

5000m

5000m

5000m

Accuracy

±(2mm+2ppm×D)

±(2mm+2ppm×D)

Maxi/Min. Count

Max: 999999.999m; Min: 1mm

Distance Unit

M or Ft selectable

Measuring Time

1"-Single Shot; 0,5"-Repeated; 0,1"-Tracking

Circular/Plate Bubbles

Circular: 8'/2mm; Plate: 30"/2mm

Atmospheric Correction

Temperature

°C or °F

Air Pressure

hPa/mmHg/inHg

Atmospheric Deflection & Earth Curvature

K=0.14/0.20/0 selectable

Prism Constance

0mm/30mm

Optical Plummet


Erect

Magnification

Field of View

Focusing Range

0.5m ~ ∞

Auto Compensator

System

Dual Axis Liquid Electronic

Working Range

±3"

Accuracy

3'

Display

Windows CE (illuminated Panels)

Data Port (Interface)

RS-232C/usb micro/pendrive

Power Supply

Battery KB-20

Rechargeable Ni-H; Output: DC 6V

Operating Time

8Hrs (wit big battery: NB-20A)

Charger KC20

220V or 110V, 50HZ

Ambient Temperature

-20°C ~ +45° C

Tribrach

Detachable

Standard Accessories

Refer to

Packing Details

1pc per Carton; 12kgs per Carton;
Dimensions per Carton: 0.06CBM (50cm ×30cm ×40cm)

Note: Any updating may occur without prior notice

Total Station Kolida KTS 462-RM

New
KTS462-RM
!
Zoom
Total Station Kolida KTS 462 Reflectorless 800MT
Total Station Kolida KTS 462 Reflectorless 800MT
