GPS-GNSS KOLIDA

Los sistemas de cinemática en tiempo real (RTK) se semplifican, con los receptores KOLIDA de última generación de la serie K9 T.

Con un motor RTK enormemente mejorado, el receptor KOLIDA K9-T es compatible con las señales L2C y L5 de GPS-GNSS. Además viene preparado para recibir señal de GALILEO y COMPASS. Experimentará un aumento en su productividad usando sus 220 canales, con radiotransmisores UHF y modem GPRS integrados.

Con la nueva serie KOLIDA K9-T, estas son las mejoras introducidas:

-Radio interna
-Mayor velocidad de arranque
-Capacidad de almacenamiento de datos en post-proceso hasta 4 GB

Además podrá configurarlos como base o como rover en función de sus necesidades.

PRECISIÓN:

-Precisión RTK horizontal:   1cm + 1ppm
-Precisión RTK vertical:        2cm + 1ppm

-Precisión estática horizontal:  3mm + 1ppm
-Precisión estática vertical:       5mm + 1ppm



KOLIDA K9-T ROVER
-L1/L2/L2C/L5
-GLONASS Y GALILEO
-RTK (1cm)
-Post-proceso: estàtico y dinàmico

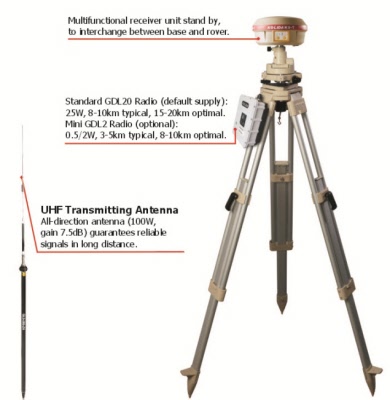

KOLIDA K9-T BASE
-L1/L2/L2C/L5
-GLONASS Y GALILEO
-RTK (1cm)
-Post-proceso: estàtico e dinàmico
!

GPS GNSS KOLIDA K9-T
From
+Shipping
K9-T
Weight: kg
!

KOLIDA K9 T GPS GNSS Receiver, Advanced Trimble Maxwell 6 Custom Survey GNSS chip with 220 channels, High precision multiple correlator for GNSS pseudorange measurements

RTK K9-T

Product Feature

Receiver part
Advanced Trimble Maxwell 6 Custom Survey GNSS chip with 220 channels
High precision multiple correlator for GNSS pseudorange measurements
Unfiltered, unsmoothed pseudorange measurements data for low noise, low multipath error, low time domain correlation and high dynamic response
Very low noise GNSS carrier phase measurements with <1mm
Precision in a 1Hz bandwidth
Signal-to-Noise ratios reported in db-Hz
Proven low elevation tracking technology
Initialization time <15s
initialization reliability>99.9%
Satellite signals tracked simultaneously
GPS:
L1 C/A, L2E, L2C, L5(reserved)
GLONASS:
L1 C/A, L1P,
L2 C/A (GLONASS M only), L2P
SBAS:
L1 C/A, L5(reserved)
Gallileo:    (reserved)
GIOVE-A:  L1 BOC, E5A, E5B, E5AltBOC
GIOVE-B:  L1 CBOC, E5A. E5B, E5AltBOC
Compass: (reserved)
B1(QPSK), B1-MBOC(6,1,1/11) , B1-2 (QPSK),
B2(QPSK), B2-BOC(10,5 ) ,
B3(QPSK), B3BOC(15,2.5),
L5 (QPSK).

Features:
• Receiver part
Advanced Trimble Maxwell 6 Custom Survey GNSS chip with 220 channels
High precision multiple correlator for GNSS pseudorange measurements
Unfiltered, unsmoothed pseudorange measurements data for low noise, low multipath error, low time domain correlation and high dynamic response
Very low noise GNSS carrier phase measurements with <1mm
Precision in a 1Hz bandwidth
Signal-to-Noise ratios reported in db-Hz
Proven low elevation tracking technology
Initialization time <15s
initialization reliability>99.9%
Satellite signals tracked simultaneously
• GPS:
L1 C/A, L2E, L2C, L5(reserved)
• GLONASS:
L1 C/A, L1P,
L2 C/A (GLONASS M only), L2P
• SBAS:
L1 C/A, L5(reserved)
• Gallileo:    (reserved)
GIOVE-A:  L1 BOC, E5A, E5B, E5AltBOC
GIOVE-B:  L1 CBOC, E5A. E5B, E5AltBOC
Compass: (reserved)
B1(QPSK), B1-MBOC(6,1,1/11) , B1-2 (QPSK),
B2(QPSK), B2-BOC(10,5 ) ,
B3(QPSK), B3BOC(15,2.5),
L5 (QPSK).
Specification:
Receiver accuracy
REAL TIME KINEMATIC SURVEYING
horizontal accuracy: 10mm+1ppm RMS
vertical accuracy: 20mm+1ppm RMS
WAAS differential positioning accuracy   typically: <5m  3D RMS
Static AND Fast static GNSS Surveying
Static horizontal accuracy: ±3mm+1ppm RMS
Static vertical accuracy: ±5mm+1ppm RMS
Code differential GNSS positioning
Code differential positioning accuracy: 0.45m(CEP)
Single positioning accuracy: 1.5m(CEP)

Physical specification
Size Height: 96mm   Diameter:186mm
60mm from the airproof rubber loop to the bottom
Weight: 1.2kg with internal battery, internal radio standard UHF antenna.
Temperature
Operation temperature:-25℃ to 60℃ (-13 F to140 F )
Storage temperature:-55℃ to 85℃ (-67 F to 185 F)
Humidity: 100% condensing
Water / dustproof:  protected from temporary immersion to depth of 1m
Shock and vibration: tested and meets the following
environmental standards:
Shock: non-operating: Designed to survive a 2m pole Drop on to concrete. Operating: to 40G, 10 msec, sawtooth

Electrical
Power 9 to a 15V DC external power input with over-voltage Protection on port 1 (5-pin Lemo)
Rechargeable, removable 7.4V, 2.3 Ah Lithium-lon battery in internal battery compartment. Power consumption is 3.8W, in RTK rover
Mode with internal radio, operating times on internal battery:
-450MHz receive only option: 4.8hours
-GSM/GPRS: 4hours

Communication and data storage
3-wire serial (5-pin Lemo) on port 1, 3-wire serial+1.1 USB on port 2(DB9)
Full integrated, fully sealed internal 450MHz receiver
Fully integrated, fully sealed internal GSM/GPRS option
Fully integrated, fully sealed 2.4Ghz communications
port(Bluetooth)
External cellphone support for GSM/GPRS modems for RTK and VRS operations
Data storage on 64MB internal memory: 45.7 days of raw
observables (approx. 1.4MB per Day), based on recording
every 15 seconds from an average of 14 satellites
1Hz,2Hz, 5Hz, 10Hz and 20Hz positioning
CMR, RTCM2.3, RTCM3.0 input and output
0183 NMEA outputs

Radio Frequency
430-450 MHz ( interval 12.5khz) or 450-470 MHz

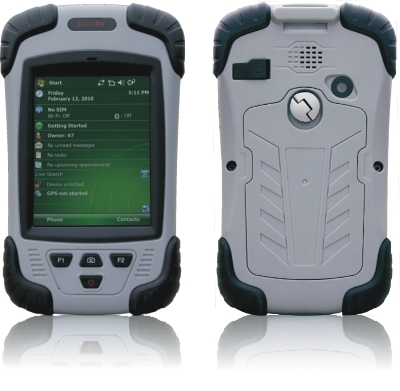

GPS S750
+Shipping
GPS S750
Weight: kg
!
Zoom

High-performance submeter GPS with integrated SBAS and EVEREST multipath technology Static and Stop&Go multi-function integrated Data collection for GIS Access various kinds of CORS with GPRS module Rugged handheld with all-day battery

High Performance in Accuracy
S750 can provide reliable location data.You can use it to do static work,also you can use it to do stop & go work.,after collecting data with built-in program,you can postprocess it in the office and get high-accuracy result.If you want to submeter performance in real time, you can use SBAS corrections, or use GPRS module to get a network differential correction from CORS.

High Expansibility
Generally, S750 adopts a built-in GPS antenna, but when do static work, you need an external GPS antenna, which can get high-accuracy result,S750 can switch between internal antenna and external antenna automatically. Apart from the above functions, S750 has good expansibility tools and forms can be customized by requirement.

Practical Software System
SOUTH S750,which owns a powerful 32-bit processor with 520MHz,runs the advanced Microsoft Windows CE.net 5.0 software which is used by the pocket PC operating system. Windows CE.net 5.0 operating system is an open platform, which is widely applied to industrial control,multimedia products and mobile devices,etc.
Thus, users can easily choose or customize a suitable software solutions. Windows CE.net 5.0 is similar to other Microsoft softwares, apart from this, users can easily exchange data seamlessly between field and office as well.

Excellent Engineering Performance
SOUTH S750 system combines the GPS receiver with handheld computer, which can be operated all-day. Built-in battery which is easy portability, whose industrial design be able to withstand the test of tough environment.
Handheld operating software and post-processing software are designed for convenient operation.It ensures that users can operate it with minimal training .
effective solution of mobile mapping.

System
■ Windows CE.net 5.0(classic edition)
■ VGA display (240 X 320), sunlight-readable color touch screen
■ Integrated Bluetooth wireless technology
■ Integrated 802.11b/g wireless LAN
■ Ergonomic cable-free handheld
■ Rugged and water-resistant design
■ All-day internally rechargeable Lithium battery
■ PXA270 520 MHz XScale processor
■ 128MB RAM
■ 128MB Flash data storage
■ Sealed SD/SDHC card slot
■ Integrated speaker and microphone

GPS
■ Integrated high-performance GPS/SBAS receiver and L1 antenna
■ GPRS module is available
■ Access various kinds of CORS
■ Submeter real-time or postprocessed accuracy
■ NMEA protocol support
■ EVEREST multipath restraining technology

Standard Kits
■ S750 receiver
■ Battery
■ Charger
■ Adapter
■ Communication cable
■ SD card kits
■ Manual & Software

Optional features
Optional Accessories
■ External antenna
■ GPRS module

Physical
Size:19cm×7.5cm×3.1cm
Weight:0.421Kg  with battery
Processor:520 MHz PXA-270 Xscale processor
Memory:128MB RAM and 128MB internal Flash storage
Battery:3.7Volt 1700mAH Lithium battery pack
             (3.7Volt 2350mAH high-capacity battery optional)
              rechargeable button cell battery backup for data
              retention(user accessible)

Environment
Operating temperature:-20℃～+60℃(-4℉ ～140℉)
Storage temperature:-40℃～+70℃(-40℉ ～158℉)
Casing:Dust-proof and resistant to heavy wind-driven
            rain per IP65 standard Slip-resistant grip,
            shock and vibration resistant

Input/Output
Expansion: SD card slot (SD or SDHC storage card)
Display: VGA(240×320pixel),TFT,16bit,colors with backlight
Audio:Built-in speaker with volume control
Screen: Touching screen is suitable for finger operation

GPS
Channels:14(12 L1 code and carrier, 2 SBAS)
Integrated real-time:SBAS (dual-channel tracking)
Update rate:1 Hz
Time to first fix:30~40 seconds
Protocols
Data output: NMEA-0183 (GGA, VTG, GLL, GSA, ZDA, GSV, RMC)

Accuracy (HRMS) after differential correction
Post-process: Submeter
Real-time (SBAS or external correction source): Submeter

GPS S35 DGPS
Just
+Shipping
GPS-S35
Weight: kg
!

S35 Differential Receiver Sub-Meter DGPS Surveying Solutions.  S35 Differential receiver can receive various SBAS signals, including GPS satellite signals, as well as differential signals launched by the geo-stationary satellites (also called satellite difference), so as to improve the positioning precision.

S35  Differential Receiver

 Sub-Meter DGPS Surveying Solutions

Operational areas:

·         Hydrographic construction positioning

·         Tidal land surveying

·         Navigation for ocean transportation

·         Territorial resources investigation

·         Line investigation

·         Collection of GIS data

S35 Differential receiver can receive various SBAS signals, including GPS satellite signals, as well as differential signals launched by the geo-stationary satellites (also called satellite difference), so as to improve the positioning precision.

Features:

·         The differential positioning accuracy is up to sub-meter level

·         The operation is simple, power on to receive satellites, without other setting.

·         Industrial mold, with 3 proofs functions

·         Built –in battery and bluetooht, convenient for land surveying

·         Wide range of application

·         The continuous working time is up to 21 hours

Specifications:

·         GPS signal:   L1  C/A code  carrier phase smoothing (Patented COAST proprietary technology, when differential signals outage)

·         Channel:  12 channels parallel tracking (10 channels when tracking SBAS)

·         Differential Source:  SBAS  (WAAS, EGNOS, MSAS)

·         Horizzontal Accuracy:   DGPS<  1m         Single receiver < 2.5m

·         Communication:  RS-232 or Bluetooth

·         Output pulse: 1PPS

·         Baud Rate: 9600bps

·         Output data format: NMEA0183

·         External power: 9-36VDC

·         Power consumption: <102W@12VDC

·         Weight: 0.6Kg (Built-in Battery included)

Standard KIT:

·         S35 Mainframe   1PC

·         Special data cable for S35  1PC

·         12V DC Power cable  1PC

·         Lithium battery for receiver S82+/S82/9200-9600/Vector/Pilot 7.2V, 2300mAh

·         Battery charger for BT-L72SA

·         Software Power Nav

·         Plastic carrying case for Pilot

·         User manual for Pilot downloadable version

·         User manual for Pilot paper printed version



GPS H 66
+Shipping

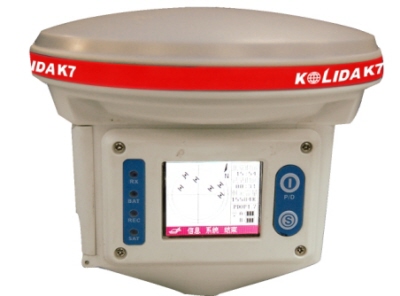

K7
Weight: kg
!
Zoom

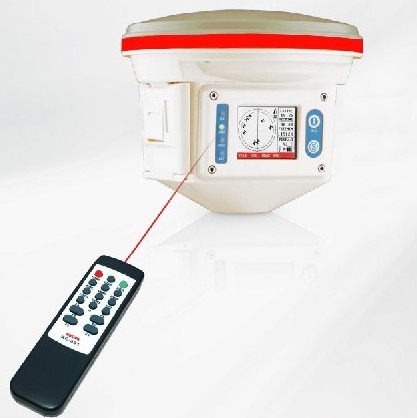

K7 is an smart ,integrative and single-frequency GPS receiver. All components are integrated to the small mainframe including cables, batteries, receiving antenna ,etc

※Infrared，remote controller,5m working distance,convenient to input letters and numbers
※Full color screen
※Two batteries built-in designed ,switch to each other automatically
※Compatibility, can work with other brands’ single & dual-frequency receivers to do control surveying

1. Receiver:
Channel: independent 12 channels
Tracking signal: L1, C/A code
Memory: 16M
Working time: two batteries last 16 hours
Epoch interval:1 second to 60 seconds
Phase center: on the center point of receiver top
Operation environment temperature：-40～+70℃
Storage environment temperature: -50～+60℃
Power input: 6V～10V DC
Power: ≤1.5 W
Weight of mainframe: 0.6 Kg
Data transmit: RS232 and High Speed USB
Azimuth:0-45 degree
Initial Capture Time: ≤60 seconds
Dustproof, sand-proof
2. Static accuracy:
Static horizontal accuracy: 5mm+1ppm
Static vertical accuracy: 10mm+1ppm
Single positioning accuracy：>5m
Operation Distance: ≤30 km
Vector L1 Differential GPS Receiver
Accuracy
※Static mode:5mm+1ppm
※Stop&Go mode:cm level in good condition and sub-meter level sometime

Note:The accuracy depends on satellite status ,distance between Rover and Base, your maintenance ability of holding the surveying pole, etc.

Post-processing
※User-friendly interface, easy to operate
※Baseline can be processed automatically or with man’s intervention.
※Detailed output items, including synchronized loop, asynchornized loop, 3D adjustment, 2D

GPS H 68
+Shipping
GPS-H-68
Weight: kg
!
Zoom

GPS H 68 is an smart ,integrative and single-frequency GPS receiver. All components are integrated to the small mainframe including cables, batteries, receiving antenna ,etc

※Infrared，remote controller,5m working distance,convenient to input letters and numbers
※Full color screen
※Two batteries built-in designed ,switch to each other automatically
※Compatibility, can work with other brands’ single & dual-frequency receivers to do control surveying

1. Receiver:
Channel: independent 12 channels
Tracking signal: L1, C/A code
Memory: 16M
Working time: two batteries last 16 hours
Epoch interval:1 second to 60 seconds
Phase center: on the center point of receiver top
Operation environment temperature：-40～+70℃
Storage environment temperature: -50～+60℃
Power input: 6V～10V DC
Power: ≤1.5 W
Weight of mainframe: 0.6 Kg
Data transmit: RS232 and High Speed USB
Azimuth:0-45 degree
Initial Capture Time: ≤60 seconds
Dustproof, sand-proof
2. Static accuracy:
Static horizontal accuracy: 5mm+1ppm
Static vertical accuracy: 10mm+1ppm
Single positioning accuracy：>5m
Operation Distance: ≤30 km
Vector L1 Differential GPS Receiver
Accuracy
※Static mode:5mm+1ppm
※Stop&Go mode:cm level in good condition and sub-meter level sometime

Note:The accuracy depends on satellite status ,distance between Rover and Base, your maintenance ability of holding the surveying pole, etc.

Post-processing
※User-friendly interface, easy to operate
※Baseline can be processed automatically or with man’s intervention.
※Detailed output items, including synchronized loop, asynchornized loop, 3D adjustment, 2D

ECHO-SOUNDER - SDE 28 S
+Shipping

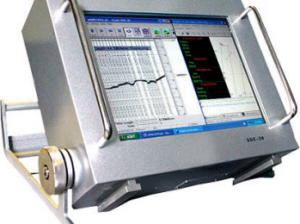

SDE-28S
Weight: kg
!

Ideal for hydrographic survey Automatic or manual control Splashproof operation, waterproof transit, heatproof design Universal power supply 5.Excellent price Unique features

The KOLIDA SDE-28S precision hydrographic enchsounder is simply a new category on its own. Surveying on water sites, at any depth is simple and professional with the superb Powernav software that lets you design on site the projected survey, as well as import features straight from your CAD software, and accepts single or double gps setup on the boat, for navigation, SBAS or RTK units. Windows XP embedded platform, 12" color LCD touchscreen display, wide array of I/O ports, configurable for various GPS and sounder interphases, and heat and splash proof stainless steel body are features that add extreme functionality to its well designed configuration. The mainframe can be connected to heave, pitch and compass sensors, output to printer, receive any NMEA-0183 GPS and run your own Windows software on it. The included PoweNav software incorporates a simple graphical data review tool and exports directly as data or DXF for easier project workflow.

Basic system configuration: 1 echosounder mainframe, 2 metallic carrying cases, 1 SBAS GPS unit, 1 sounder transducer, 1 stainless steel fixation pole, 1 power cord, 1 12V power cord with clamps, 1 software key, 1 USB memory unit, 1 mouse, 1 keyboard set, 1 software CD.

Main features: Windows XP embedded platform - Wide array of I/0 options - Full featured software - All inclusive set - Outdoor readable touch display - Rugged stainless steel body - Easy to use SBAS or RTK GPS - Best price/benefit available.

International two years warranty: every Stonex echo sounder comes with an international warranty of 2 years upon the date from the first sale. We recommend you to acquire instruments only from authorized Stonex dealers and use them with Stonex accessories for better performances.

SOUNDER
Frequency 200 kHz
Beam angle 7°
Display 12.1" Color LCD touchscreen
Output power Adjustable up to 200W
Depth resolution +/-0.1% of water depth
Sound speed 1300-1650 m/s
Depth range 0.39-220m
Drift 0-9.9m
Pulse lenght Automatic and manual setup
MAINFRAME
Serial ports 2 RS-232 ports, 1200-115200 bauds
Printer por 1 DB-25
USB ports 2
User input Screen, mouse, keyboard
DC power supply 9-18V less than 25W
AC power supply 110-230V, less than 25W
Operational temperature -30°C to +60°C
Weight 11,15 kg
