Laser Level
Laser Level
!

Cross Line Laser LP102
Weight: kg
!
Zoom

Cross Line Laser LP102, Magnetic damping compensator to ensure more quick self-leveling time. Horizontal/vertical laser line, vertical line will be extended across ceiling. Automatic shut off laser line if out of self-leveling range. Built-in locking system to lock the compensator when in transportation to avoid vibration

Precisión de ±1 mm en una distancia de 3 m

·         Posibilidad de proyectar previa selección una línea horizontal, vertical o en cruz

·         La nivelación se efectúa automáticamente hasta ±4 °, al salir del rango se activa una alarma visual

·         Apto para interiores y exteriores, en interior hasta 30 metros

·         Rayo láser luminoso por la modalidad de impulsos, lo que convella una buena visibilidad aún en ambientes de mucha claridad

Alimentación por 2 baterías  AA (10H

Laser Beams projected out

  2 Lines(1Horizontal and 1Vertical)

Leveling Range

  ±3°

Leveling Range

  ±4°

Horizontal Accuracy

  ≤4.5mm/10m

Vertical Accuracy

  ≤1.5mm/3m

Size

  88mm(L)×48mm(W)×90mm(H)

Shipping Carton Details

6pcs per Carton;16kgs per Carton; Dimensions per Carton;0.10CBM(47cm×71cm×31cm)

Point Laser LP106
Weight: kg
!
Zoom

Cross Line Laser LP106, Self Leveling with Magnetic damping compensator.1 cross Line with 4 plumb point, the cross line and each plumb point is at 90g

1 Cross line with 4 plumb point

Leveling Range

  4°±0.5

Horizontal Accuracy

  ≤4mm/10m

Vertical Accuracy

  ≤4mm/10m

Size

  105mm(L)×50mm(W)×120mm(H)

Shipping Carton Details

  20pcs per Carton;17kgs per Carton; Dimensions per Carton;0.063CBM(52cm×42cm×29cm)ADODB.Recordset

Cross Line Laser LP220
Weight: kg
!
Zoom

Cross Line Laser LP220, Magnetic damping compensator to ensure quick self-levelling time. Horizontal and vertical line at 90° Automatic shut off laser line if out of self-leveling range . Equipped with pendulum locking system to protect the instruments under transportation

Features:

  • Magnetic damping compensator to ensure quick self-levelling time.
  • Horizontal and vertical line at 90°
  • Automatic shut off laser line if out of self-leveling range .
  • Equipped with pendulum locking system to protect the instruments under transportation.

Specifications:

Levelling accuracy:

3mm/9m

Horizontal/Vertical line
(end to end):

±1.5mm at 3m

Line length:

14m at 10m target distance

Recommended working range:

Up to 10m, depend upon illumination of working area.

Laser diode:

635nm

Self leveling range:

±5°

Self leveling speed:

<3 seconds

Power:

Three AA size Alkaline batteries.

Weight:

0.8KG

Standard outfit:

LP220 main unit, laser glasses, target plate, wall mount, instruction manual, soft bag.

Cross Line Laser LP330
Weight: kg
!
Zoom

Cross Line Laser LP330, Magnetic damping compensator to ensure quick self-levelling time. One cross line plus one 90 At reference line. Automatic shut off laser line if out of self leveling range. Equipped with pendulum locking system to protect the instruments under transportation.

Features:



  • Magnetic damping compensator to ensure quick self-levelling time.
  • One cross line plus one 90¡ãreference line.
  • Automatic shut off laser line if out of self leveling range.
  • Equipped with pendulum locking system to protect the instruments under transportation.



Specifications:

Levelling accuracy:

3mm/9m

Horizontal/Vertical line
(end to end):

±1.5mm at 3m

90° plumb reference line

±1.5mm at 3m

Line length:

14m at 10m target distance

Recommended working range:

Up to 10m, depend upon illumination of working area.

Laser diode:

635nm

Self leveling range:

±5°

Self leveling speed:

<3 seconds

Power:

Three AA size Alkaline batteries.

Weight:

0.9KG

Standard outfit:

LP330 main unit, laser glasses, target plate, wall mount, instruction manual, soft bag

Multi Line Laser LP801
Weight: kg
!
Zoom
Multi Line Laser LP801
Multi Line Laser LP801

LP804 Multi-line laser

Weight: kg
!
Zoom

Equipped with magnetic damping system for quick self-leveling.
If the unit exceed the self-leveling range, the laser line will be shut off with warning signal.
The unit will emit one horizontal, 4 vertical line with plumb dot, the 4 vertical line will be acrossed on the ceiling at 90 degree.

With horizontal rotating mechanism and fine adjustment knob for convenience working.
With Indoors/Outdoors switch function, laser detector can be used for outdoors operation.
Remote control can be optioned to control most function on the unit. Features:

  • Equipped with magnetic damping system for quick self-leveling.
  • If the unit exceed the self-leveling range,the laser line will be shut off with warning signal.
  • The unit will emit one horizontal,4 vertical line with plumb dot,the 4 vertical line will be acrossed on the ceiling at 90°.
  • With horizontal rotating mechanism and fine adjustment knob for convenience working.
  • With Indoors/Outdoors switch function,laser detector can be used for outdoors operation.
  • Remote control can be optioned to control most function on the unit.
  • Standard outfit: LP804 main unit,laser glasses,magnetic target,batteries,plastic case. Optional accessories:LVH800 laser detector with clamp, RL800 remote control.
Technical Specifications:
Main unit lp804
Accuracy: 1mm/5mm
Self leveling range: ±3°
Working range: 10m without detector,25m with detector
Laser source: 7mw laser diode
Wave length: 635nm±5nm
Width of laser: 1.5mm/5m
Output power: ≤1mW
Laser safety class: Class II
Working distance of remote control: 25m-30m
Power supply: 4.5V(3XAA size batteries)
Operating time: 10 hours for continuous operation
Range of operating temperature: -10°C – +50°C
Mounting thread: 5/8"X11,ISO standard
Size: 158X178X245(mm)
Weight: 2.2kg
Remote Control RL800
Remote control form: Infrared
Remote control distance: 25m-30m
Function: Control the transmission of one horizontal line and four vertical lines and indoors/outdoors mode

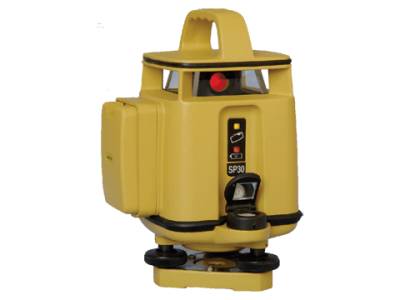

Laser Level SP30
Weight: kg
!
Zoom

SP30 Automatic Rotation  Laser Whit Laser Receiver



Features:

  • Self-levelling with wire hung and magnetic damping compensator.
  • Visible or invisible rotating laser beam,horizontal scanning.
  • Automatic shut off laser beam if out of leveling range,with unleveled warning lamp and battery power warning lamp.
  • Sealed structure for using in various weather conditions.

Specifications:

Self leveling range:

±10’

Accuracy:

±1mm at 10m

Working distance with detector:

150m

Rotating speed:

300rpm

Power supply:

4x1.5v C cell batteries.

Operating time:

10 hours for continuous operation.

Wave length:

visible 635nm laser diode

Laser safety class:

Class II <1mw

Sensitivity of circular level:

8′/2mm

Weight:

2.5KG

Standard outfit:

Automatic laser level, LC-2 laser detector with clamp, adjusting pin,instruction manual,plastic carrying case.

Laser Level SP401
Weight: kg
!
Zoom

Laser Level SP401 Whit Remote Control and Laser Receiver, Automatic self-Leveling in both horizontal and vertical modes. Choice of beams: Rotating plane, scanning, chalk line. Single point or constant squaring. Visible laser beam. Easy electronic calibration.Square shot that is left/right adjustable

1"/5"/10", 0,0003G/0,001G, 0.001m/0.01m

Laser Level SP50
Weight: kg
!

SP50 Laser Level Whit Remote Control and Laser Receiver LS6, Equipped with high quality and accurate 3axis electronic sensor. Extremely quick automatic self-leveling for horizontal and vertical working.

Features:

  • Equipped with high quality and accurate 3 axis
  • electronic sensor.
  • Extremely quick automatic self-levelling for horizontal and vertical working.
  • Auto mode/Manual mode for option, Simple slope function can be set up under Manual mode.
  • When vertical working, the laser line can be moved forward and backward.
  • With rotating, spot and scan function for option and speed can be changed.
  • With self-checking and self-calibration function for user′s convenience.High accuracy/Low accuracy can be switched for different usage.
  • With 90° plumb laser beam.
  • Fitted with remote control to control most functions on the laser

  • Specifications

    Automatic levelling range:

    ±5°

    Slope(Y-axis):

    ±5°

    Accuracy (horizontal):

    ±10″

    Vertical:

    ±20″

    Operating range with detector:

    ±200m

    Rotating (without detector):

    apporx.20m(depending on room illumination)

    Spoting (with out detector):

    approx.50m

    Scanning (with out detector):

    approx.30m

    Remote control range:

    30m(with infra-red),80m(with RF)

    Rotation speed:

    0/5/200/420rpm right/left turn

    Scanning-function:

    3 steps

    Operating time:

    40h with D type batteried/10h with rechargeable batteries Option

    Power supply:

    4X1.5V D type/5X1.2V Ni-H Option

    Working range:

    -10°C∼+50°C

    Laser diode:

    635nm

    Laser class:

    Class II

    Tripod attaching screw:

    5/8″X11 thread

    Water proof:

    IPX6

    Weight:

    2.5kg

Laser Level Green SP50G
Weight: kg
!
Zoom

Equipped with high quality and accurate 3 axis electronic sensor. Extremely quick automatic self-leveling for horizontal and vertical working.

Auto mode/Manual mode for option, Simple slope function can be set up under Manual mode. When vertical working, the laser line can be moved forward and back ward. With rotating, spot and scan function for option and speed can be changed.With self-checking and self-calibration function for user’s convenience. High accuracy/Low accuracy can be switched for different usage.With 90°plumb laser beam.Fitted with remote control to control most functions on the laser.More bright green laser beam for interior working

Laser Level SP70 Dual Grade
Weight: kg
!
Zoom

Laser Level SouthGeosystems SP70 Dual Grade, Universal Visual Laser with Dual Grade. Equipped with high quality and accurate 3axis electronic sensor. Automatically self-levels in both horizontal & vertical

Laser Level SouthGeosystems SP70   is ideal for machine control and other dual grade applications, and has scanning and  constant squaring for interior jobs.

Automatically self-leveling in both horizontal and vertical by step motor control; no need to rough level as with pendulum compensators. Wide leveling range of /- 10% for fast setup.

Choice of automatic or manual modes.

H.I. Alert (Tilt function) shuts off the laser if disturbed, preventing inaccurate reading if H.I changes. High accuracy/Low accuracy can be switched by MRS for different usage.

With self-checking and self-calibration function for user’s convenience.

Keypad control conveniently detaches from the laser and can be used as a remote

control. Laser Level SouthGeosystems SP70  can be calibrated using the remote control.

Other features include constant squaring for 90°angles, scanning mode, and plumb beam,

single or dual grade-LCD displays slope setting from -10% to 10% in X, Y, and Z.

Plumb Laser HPL2
Weight: kg
!
Zoom
Plumb Laser HPL2



Accuracy

  Upper Point:±10"; Downward: ±1'(±0.3mm/1m)

Laser Source(Visible Beam)

  635nm visible;Class II.<1mw

Power Supply

  Rechargeable Batteries:DC:6V(Ni-H:5×1.2V) Continuous Working Time :Approx. 16Hrs

Ambient Temperature

  -20°C ～ +50°C

Standard Accessories

Plumbing Beam Range

  Upward:100m;Downward:5m

Spot Size(Emit Aperture)

  Upward:Ø15mm;Downward:Ø6mm

Compensation System

  E-sensor:Self-leveling

Compensation Range

  Upward:±3°;Downward:±2.5°

Water-proof and Dust-proof

  IP×6

Dimensions(L×W×H)

  170mm×170mm×241mm(N.W.:2.5kg)

Shipping Carton Details

  1pc per Carton;6.00 kgs per Carton Dimensions per Carton;0.06CBM(51cm×31cm×38cm)

Features

  1.Equipped with hi-accuracy 3-axis compensator for fast and automatic leveling. 2.Visible and "Bull's eye" plumbing beams for easy,fast and precise alignment. 3.With a wide plumbing range (Upward:100m;downward:5m) 4.Ideal for alignment of tall buildings and high objects.

Note

  The Specifications would be subject to change without prior notice!





Laser Level FRE 201
Weight: kg
!
Zoom

Laser Level FRE 201 Whit Remote Control and Laser Receiver

Specification:

Level system

:with high quality and accurate electronic sensor

Self leveling precision

: horizontal ±10″vertical ±10″

self leveling range

:±5°

operation rang

:dia.500m （with detector）

rotation speed

:0;60;120;300;600 r.p.m.

scanning angle

:0; 10°; 45°; 90°; 180°

set grade

:±5°（x,y axis）

laser source

 :laser diode，wavelength 635nm

down point precision

:±1 mm/1.5m

remote control

:approx.20 m

operation temperature

:－20℃--＋50℃ （－4℉--＋122℉）

power supply

:DC 4.8-- 6V(4 NI-MH battery &dry battery)

working time

:approx.20hr

waterproof

:IP 66

dimension

:135（L）X 135（W）X 170(h)mm

weight

:2.0kg

Laser Level KML22
Weight: kg
!
Zoom

Laser Level KML22 Whit  Laser Receiver  Horizontal or vertical rotation , Bright clear visible red beam (635mm) , Fixed plumbing beam upward only for KL-21, upward or downward, for KL-22 , 4 ‘C’ alkaline or rechargeable battery available for continuous operation

Laser Level JP200A Green
Weight: kg
!
Zoom

Laser Level JP200

whole set includes
case, foam
mainbody
charger
remote contoler
clamp/receiver
save guard glasses for laser

technical details
horizontal accuracy ………………………… +/- 15"(1.5mm/10m)
auto compensation range …………………… +/-5degree
range of detector using …………………… (diameter: 300m)
scanning RPM 2-600rmp…………………………(stepless)
slop setting ……………………………………+/-5degree
laser wave length ………………………………635(scanning head)
laser plummet accuracy…………………………+/-1mm/1.5m
laser wave length of laser plummet …………650
remote control ……………………………………50m
remote control function …………………………clockwise/revise-clockwise, on/off, speed(RPM)
working tempeture …………………………………-20degree —+50degree
power …………………………………………………DC4.8V—6V
continues working duration ………………………>20hours
dimension ……………………………………………about 135x135x175

MDL60 Digital Level
Weight: kg
!
Zoom

MDL60 Digital Level, Measure angles in degrees,percentages, Alternate zero mode

Features:

  • Backlit LCD display
  • Measure angles in degrees,percentages,Alternate zero mode.
  • Slope display
  • Acoustic signal at level and plumb
  • Self-checking accuracy.
  • Self-calibration

Auto power-off

Specifications

Working range:

360°quadrants

Resolution:

0.1°

Accuracy:

±0.1°

Power:

9v PP3 Alkaline battery.

Auto power off:

5 minutes

Battery life:

50 hours

Operating temperature:

-5°C∼+40°C

Dimension:

600x25x50 mm

Weight:

600g
