Automatic Level
Automatic Level
!

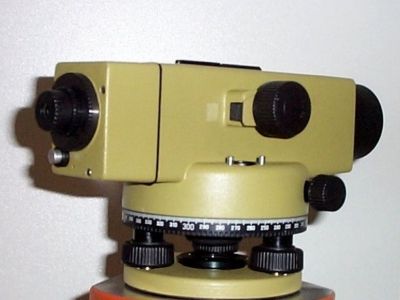

Automatic Level DSZ2
Weight: kg
!
Zoom

Automatic Level SouthGeoSystems DSZ2, DSZ2 and DSZ1 are two universal automatic levels meet all the requirements of precision levelling.

To improve accuracy a parallel plate micrometer can be fitted over the telescope objective. The parallel plate micrometer permits direct readings to 0.1mm and estimated readings to 0.01mm.

This makes the DSZ2 and DSZ1 an ideal precise level for deformation studies or industrial measuring tasks. The DSZ1 model has an internal glass circle for reading horizontal angles. Combined with the stadia calculation of distances from staff readings.

The DSZ1 model has an internal glass circle for reading horizontal angles. Combined with the stadia calculation of distances from staff readings the DSZ1 circle adds the application benefit of detail survey work.

push button compensator check, endless horizontal drive for left and right handed users, coarse and fine focusing knob, play-free footscrews, optional eyepieces available top-class optics

The parallel plate micrometer permits direct readings to 0.1mm and estimated readings to 0.01mm. This makes the DSZ2 and DSZ1 an ideal precise level for deformation studies or industrial measuring tasks.

Model
DSZ2

Magnification

32×

Standard Deviation for 1Km Double-Run Leveling

With PPM-FS1

±0.7mm

Without PPM-FS1

±1.5mm

Objective Aperture

45mm

Setting Accuracy

±0.3"

Resolution Power

3.0"

Image of Telescope

Erect

Working Range

±14'

Compensator Type
Air Damping

Shortest Focusing Distance

1.6m

Field of View

1°20'

Multiplication Constant

100

Additive Constant

0

Sensitivity of Circular Level

8'/2mm

Outer Circle

360°/1° or 400gon/ 1gon

Ambient Temperature

-30°C ~+50°C

Central Thread

5/8"×11

Recommended Tripod

Light-duty Tripods

Standard Accessories

Plumb Bob, Adjusting Pin, Hex Key,
User Manual,Desiccating Agent, Rain Cover

Packing Details

4pcs per Carton; 17kgs per Cartons;
Dimensions per Carton: 0.10CBM (=53cm ×36cm ×53cm)

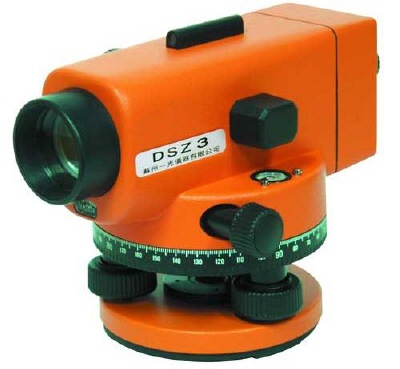

Automatic Level DSZ3
Weight: kg
!
Zoom

SouthGeosystems DSZ3 is used in 3rd and 4th order leveling and in geodetic control, construction of roads and industrial applications. The compensator improves performance and obtaining higher efficiency. It can be operated in the temperature from -30℃ to +50℃.

DSZ3

● Equipped with a press button for compensator checking.

● Dismountable eyepiece,assorted accessories,such as:Diagonal Eyepieces.

● Adopt crossing suspender frame and compensator of air damper.

Item

DSZ2

DSZ3

Standard deviation of 1km double run

±1.0mm

±2.0mm

DSZ2+FS1

±0.5mm

/

Telescope

Erect

Magnification

32x

24x

Shortest Focusing Distance

1.6m

0.7m

Compensator

     Working range

±14'

     Setting Accuracy

±0.3"

±0.5"

     Setting time

≤2s

Circular level sensitivity

8' / 2mm

Operating temperature

-30℃~+50℃

Net Weight

2.5kg

2.0kg

Automatic Level DS32
Weight: kg
!
Zoom

SouthGeosystems, DS32 is used in 3rd and 4th order leveling and in geodetic control, construction of roads and industrial applications. The compensator improves performance and obtaining higher efficiency. It can be operated in the temperature from -30℃ to +50℃.

Technical Data of 'DS' Auto Levels

　

DS20

DS24

DS28

DS32

Standard Deviation for 1 km Double-run Lwevelling

2.5mm

2.0mm

1.5mm

1.0mm


Erect

Erect

Erect

Erect

Magnification

20x

24x

 28x

32x

Objective Aperture

34mm

34mm

39mm

 39mm

Field of View

1020'

1020'

1020'

1020'

Minimum Focus

0.5m

0.5m

0.7m

 0.7m

Multiplication Constant

100

100

100

100

Additive Constant

0

0

0

0

Compensating Range

+/- 15'

+/- 15'

+/- 15'

+/- 15'

Setting Accuracy

+/- 0.8"

+/- 0.8"

+/- 0.8"

+/- 0.8"

Sensitivity of Bubble

8'/2mm

8'/2mm

8'/2mm

8'/2mm

Circle Reading

10 or 1gon

10 or 1gon

10 or 1gon

10 or 1gon

Special Features: (1) Chinese patent, excellent shockproof function.
                                  (2) Excellent sealed structure for using in any weather
                                  (3) Friction-braked rotating and endless horizontal drive
                                  (4) Prism for viewing circular level.

                                  (5) 22X, 26X, 30X auto levels are also available.

NOTES:

1.) Other kinds of auto levels are also available

Automatic Level NAL 228
Weight: kg
!
Zoom

NAL series levels are water-proof automatic levels. They can be used in 3rd and 4th-order leveling and also meet the needs of various surveying of construction engineering and leveling. The compensator improves performance and obtaining higher efficiency. Various magnification models (20X, 24X, 28X, 32X) can satisfy different survey demands.

NAL228 series

● Air damping for compensator

● Beautiful appearance

● Easy operating

● Temperature offset of compensator

NAL200 Series Data

　

NAL2020

NAL2024

NAL2028

NAL2032

Standard Deviation of 1km Double-run Levelling

+/-2.5mm

+/-2.0mm

+/-1.5mm

+/-1.0mm

Telescope Image

Erect

Erect

Erect

Erect

Magnification

20X

24X

28X

32X

Clear Objective Aperture

36mm

36mm

40mm

40mm

Minimum Focus Distance

0.6m

0.6m

0.8m

0.8m

Multiplication Constant

100

100

100

100

Additive Constant

0

0

0

0

Compensating Range

+/- 15”

+/- 15”

+/- 15”

+/- 15”

Setting Accuracy

0.5”

0.5”

0.4”

0.3”

Circular level Sensitivity

8’/2mm

8’/2mm

8’/2mm

8’/2mm

Circle Reading

10 or 1gon

10 or 1gon

10 or 1gon

10 or 1gon

Net Weight

2kgs

2kgs

2kgs

2kgs

Automatic Level KOLIDA KL
From
Weight: kg
!
Zoom

Automatic Level KOLIDA KL series  are robust, budget-priced construction levels. They are quick to set up, simple to use and accurate, with clear, bright optics for easy readings. Superior performance at a great price. Robust and accurate, Air-damped compensator, Water resistant (IP55) Double-sided endless fine drive, Pentaprism for easy viewing of circular level, Horizontal circle with 400° division Budget-priced

AUTOMATIC LEVEL KOLIDA KL SERIES

Model

KL20

KL24

KL28

KL32

Magnification

20×

24×

28×

32×

Standard Deviation for 1Km Double-Run Leveling
±2.5mm
±2.0mm
±1.5mm
±1.0mm

Objective Aperture

32mm

38mm

40mm

40mm

Setting Accuracy

±0.8"

±0.8"

±0.5"

±0.3"

Resolution Power

4.5"

4"

3"

3"

Image of Telescope

Erect

Working Range

±15'

Compensator Type

Dual-Damping TM  (Air Damping + Magnetic Damping)

Shortest Focusing Distance

0.6m

Field of View

1°20'

Multiplication Constant

100

Additive Constant

0

Sensitivity of Circular Level

8'/2mm

Horizontal Outer Circle

360°/1° or 400gon/ 1gon

Central Thread

5/8"×11

Recommended Tripod

Light-duty Tripods

Standard Accessories

Adjusting Pin, Desiccating Agent, Hex Key, Plumb Bob, User Manual

Packing Details
4pcs per Carton; 14kgs per Carton;
Dimensions per Carton: 0.055CBM (= 60cm ×39cm ×24cm)

Laser Level Green SP50G
Weight: kg
!
Zoom

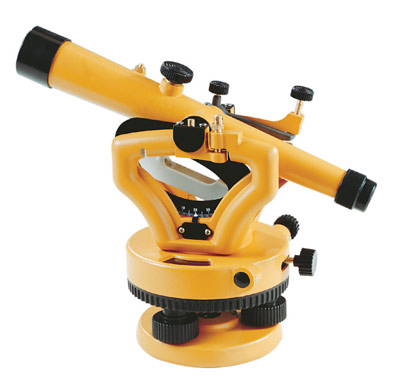

Optical Level Transit SouthGeoSystems LT 500 Versatile 20x magnification Level designed specially for reading measurements on a slope and basic aligning

Model



LT-500

Magnification



20×

Objective Aperture



22mm

Image of Telescope



Erect

Resolution Power



6.5"

Min. Focus Distance



1.5m

Field of View



1°

Multiplication Constant



100

Sensitivity of Plate Level



7'/2mm

Circle Graduation



1°/360°

Vernier Graduation



15'

Tilting Angle



±30°

N.W. of Instrument



1.75kgs

Instrument with Case



2.95kgs

Connected with Tripod



5/8 " ×11

Recommended Tripod

Light-duty Tripods

Packing Details

4pcs per Carton; 15kgs per Carton;
Dimensions per Carton: 0.07CBM (= 45cm×35cm×47cm)



Plastic Carrying Case PPC-1400B
  LT-500

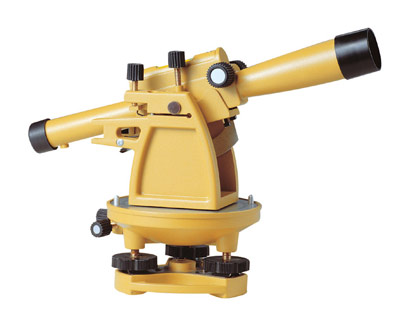

Level Transit SG500
Weight: kg
!
Zoom

Level transit SG 500 SouthGeoSystems This Optical Transit Level combines all the features of a traditional Level with the added feature of being able to slant to measure points on slopes with a gradient of +/-40°. With its 20x magnification your work will be accurate and created with a versatile time saving tool.



Model



SG-500

Magnification



20×

Objective Aperture



22mm

Image of Telescope



Erect

Resolution Power



6.5"

Min. Focus Distance



1.5m

Field of View



1°

Multiplication Constant



100

Sensitivity of Plate Level



7'/2mm

Circle Graduation



1°/360°

Vernier Graduation



15'

Tilting Angle



±30°

N.W. of Instrument



1.75kgs

Instrument with Case



2.95kgs

Connected with Tripod



5/8 " ×11

Recommended Tripod

Light-duty Tripods

Packing Details

4pcs per Carton; 15kgs per Carton;
Dimensions per Carton: 0.07CBM (= 45cm×35cm×47cm)



Plastic Carrying Case PPC-1400B

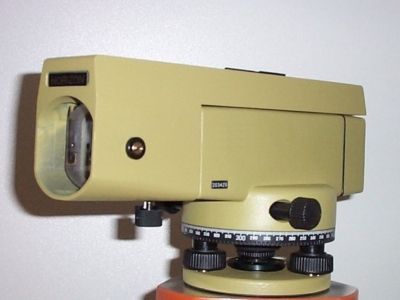

Parallel Plate Micrometer FS1
Weight: kg
!
Zoom

SouthGeosystems DSZ2 with FS1 may be used in 2nd order leveling or in monitoring structural deformation etc. The compensator improves performance and obtaining higher efficiency. It can be operated in the temperature from -30℃ to +50℃.

Parallel Plate Micrometer FS1

Model

PPM-FS1

Measuring Range

10mm

Min. Graduation

0.1mm

Estimated Reading

0.01mm

Applied to

Auto-Level DSZ2

Net Weight

1800g
