Compass DSL1 SOUTHGEOSYSTEMS Mainly used for magnetic orientation, measurement of distance, level, altitude difference gradient and etc.
FORESTRY COMPASS DSL1 SOUTHGEOSYSTEMS
Optical Compass
DSL1
Magnification
12x
Aperture
14mm
Field of View
1º30'
Resolution Power
15"
Multiplication Constant
100
Additive Constant
0.18
Shortest Focusing Distance
2m
Max. Height
±50º
Bubble Accuracy
30'/2mm
Min. Graduation
1º
Compass DQY1 SouthGeoSystems Mainly used for measuring the Strike, Inclination, Topography Skeleton Survey, etc.

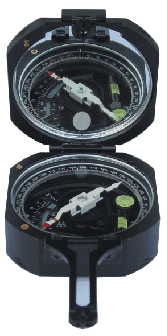

POCKET COMPASS SOUTHGEOSYSTEMS DQL-8
Pocket Compass
DQL-8
Precision of Plate Level
15'±5'/2 (mm)
Precision of Circular Level
30'±5'/2 (mm)
Reading Error
≤0.5º
Damping Time
30"~60"
POCKET COMPASS SOUTHGEOSYSTEMS DQY-1
DQY-1

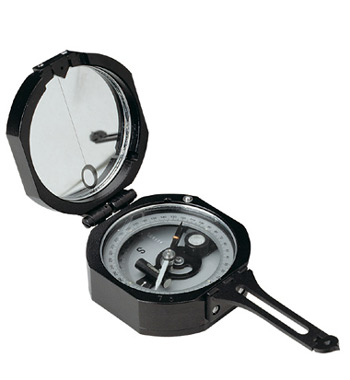

Pocket Transit DQL-2A SOUTHGEOSYSTEMS
POCKET TRANSIT DQL-2A SOUTHGEOSYSTEMS
Pocket Transit
DQL-2A
Precision of air Level
30" ± 5'/2mm
The reading error
0.50
Dial scale
10
Weight
0.2kg
Dimensions
77.5x66x20(mm)

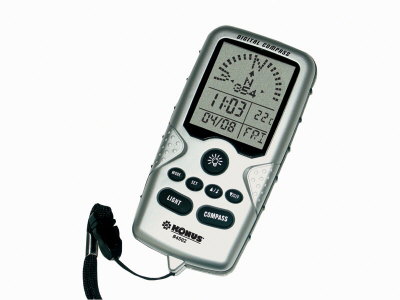

This electronic model are the true evolution of the traditional compasses and will give you much more than the direction: features many additional functions including the revolutionary mosquito repellent mode which is a sonic vibration, selectable in 3 different intensities, that keeps mosquitoes away
