Forestry Compass DQL16ZJ

SOUTHGEOSYSTEMS
DQL16ZJ-A300349
kg
Add to cart
  • Description
  • Future
  • Specifications

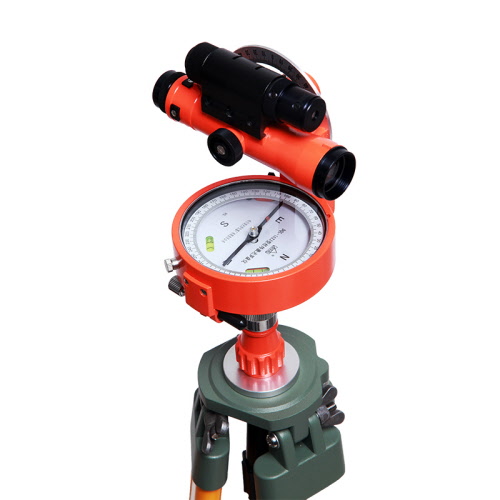

Compass DQL16ZJ SOUTHGEOSYSTEMS Mainly used for magnetic orientation, measurement of distance, level, altitude difference gradient and etc. Tripod included

SOUTHGEOSYSTEMS BRUNTON TYPE COMPASS
Compass DQL16ZJ SOUTHGEOSYSTEMS Mainly used for magnetic orientation, measurement of distance, level, altitude difference gradient and etc. Tripod included


*Magnification: 16x

*Laser power: < 5mW
*Laser wavelength: 635nm
*Iens diameter: 22mm
*Shortest focus distance: 2.5m
*Horizonal vernier scale: 5'
*The division unit of dial:1°
*Weight: 0.85kgs
*Size:130x110x234(mm)
DQL16Z-EN

Optical Compass

DQL16Z

Magnification

16x

Aperture

14mm

Field of View

1º30'

Resolution Power

15"

Multiplication Constant

100

Additive Constant

0.18

Shortest Focusing Distance

2m

Max. Height

±50º

Bubble Accuracy

30'/2mm

Min. Graduation
