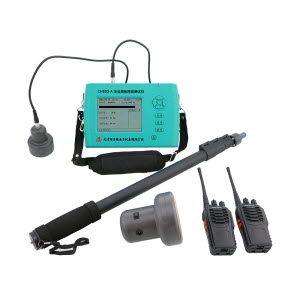

Testing concrete floor thickness CH800

CH800-1300
kg
Add to cart
  • Description
  • More
  • Specifications

Testing concrete floor thickness, Detection nonmetallic material thickness(Wall, beam, pillar, lumber, ceramic)

SOUTHGEOSYSTEMS
Testing concrete floor thickness

Features:



Host and receiving probe adopt fission style to decrease contact surface of receiving probe and floor

Emission probe and receiving probe is wireless communication mode. No need to contact any wire.

Nondestructive testing of double surfaces. Floor does not need any treatment. No need coupling agent.

High test speed. Average 3 minutes could test 3-5 test points.

High test precision. Instrument provides data to guide to aim at the probe.

Thickness display directly. No need analysis conversion. The results can be stored and printed.

Work environment condition

Ambient temperature-10 — +40 Avoid long time sun direct explosion

Relative humidity (RH)

Electromagnetic interference (EMI)

No strong alternating electromagnetic field

CH800-En

Number

Items

SPCE

1

Thickness test range (mm)

40—600

2

Thickness test accuracy 40—400(mm)

≤±1mm

3

Thickness test accuracy 401—600 (mm)

≤±2mm

4

Data storage capacity

40000 test point data

5

Size (mm)

270×150×45

6

transmitting probe (mm)

Ф100×120

7

Receiving probe (mm)

Ф60×80

8

Power Supply

9VDC Alkaline cell X 6

9

Emission probe power

9VDC Built-in high energy lithium battery

10

interface type

USB-B connector

11

lengthening bar Aluminium alloy

4 poles Ф25×600mm

12

Size (mm)

220×145×60
