Data Collector T18

SOUTHGEOSYSTEMS
T18-A250500
kg
Add to cart
  • Description
  • More
  • Specifications

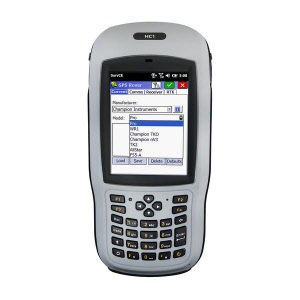

The Kolida T18 industrial keypad handheld features a combination of connectivity options and standard features such as a dedicated GNSS receiving board,DB9 series com port,Long Range Bluetooth, NFC,Wi-Fi and 3G.

kolida Gps, Glonass, Dgps, Data Collector

This provides a complete solution for high-accuracy GIS applications in any enviroment. The IP rating of this receiver makes it suitable for field use.The industrial keypad handheld come ready for you with application possibilities in power companies,agriculture and geological industries,forestry,field service and GIS/surveying.
Kolida T17:
  • Main design elements
    hardware and software
  • Total weight [kg]
    0.515
  • Width [m]
    0.096
  • Height [m]
    0.2
  • Depth [m]
    0.032
  • Resolution: horizontal pixels
    480
  • Resolution: vertical pixels
    680
  • GNSS Systems Supported
    GPS/QZSS: L1 C/A code. SBAS: L1 C/A code. BeiDou: B1. WAAS, EGNOS, MSAS
  • Number of Channels
    167
  • Integrated SBAS
    Y
  • Update Rate [Hz]
    4
  • Time to first fix after cold start [s]
    29
  • Compatible external GNSS receivers
    Supports RTCM 2.3, NMEA 0183, UBX binary and u-blox proprietary
  • Stand alone positional accuracy [m]
    3
  • Compatible GNSS correction signals
    SBAS
  • Processor
    806MHz
  • RAM [MB]
    512
  • Hard Disk [MB]
    4096
  • Types of Replaceable Memory
    SD expasnsion to 32GB
  • Audio: speaker
    Y
  • Operating System
    Windows Mobile 6.5
  • Built-in Camera: megapixels
    5
  • Audio: microphone
    Y
  • User Interfaces
    Digital Soft keyboard character input, supports handwriting and spelling input
  • Wireless Data Transfer
    Bluetooth (2.1 + EDR). WiFi (802.11 b/g/n). WCDMA. NFC (optional).
  • Bluetooth
    Y
  • Ports
    USB Port, Serial Port
  • Distinguishable features
    IP65 rated, 1.2m shockproof, SIM Card Socket, Up to 10 hours Battery Life
  • code: SBAS (constant part) [m]
    2.5
