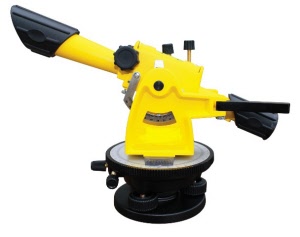

Nivel Transito TL20x

SOUTHGEOSYSTEMS
TL02-A30090
excl. Entrega kg
Incluir en la cesta
  • Descripción
  • Caracteristicas

Ideal para alineaciones, verticalización de antenas. Instrumento topográfico para medir ángulos verticales y horizontales, con una precisión de 1 minuto (1") los círculos de metal se leen con lupa, tres tornillos nivelantes.

SOUTHGEOSYSTEMS

Optical Level Transit SouthGeoSystems Level Transit TL20x Versatile 20x magnification Level designed specially for reading measurements on a slope and basic aligning

Model



LT-500

Magnification



20×

Objective Aperture



22mm

Image of Telescope



Erect

Resolution Power



6.5"

Min. Focus Distance



1.5m

Field of View



Multiplication Constant



100

Sensitivity of Plate Level



7'/2mm

Circle Graduation



1°/360°

Vernier Graduation



15'

Tilting Angle



±30°

N.W. of Instrument



1.75kgs

Instrument with Case



2.95kgs

Connected with Tripod



5/8 " ×11

Recommended Tripod

Light-duty Tripods

Packing Details

4pcs per Carton; 15kgs per Carton;
Dimensions per Carton: 0.07CBM (=
45cm×35cm×47cm)



Plastic Carrying Case PPC-1400B
  LT-500
