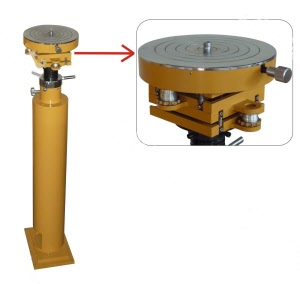

MICRO-TILTING TABLE COLUMN LS-3A

MICRO-TILTING TABLE COLUMN LS-3A

SOUTHGEOSYSTEMS
LS-3A
kg
  • Descripción
  • Mas
  • Especificaciones

MICRO-TILTING TABLE COLUMN LS-3A

MICRO-TILTING TABLE COLUMN LS-3A

Colimador W550-3, Colimador optico
4444:

SPECIFICATION:

1.Number of collimator tube: 3pcs

2.Focus: 565mm

3.Aperture: 55mm

4.Focus:550

Accuracy(Reticle’s division value): 20"

5.Lifting range of the lifting platform: 300mm

6.Max. Loading weight on support column: 40kgs

7.Optical plummet inside the support column

8.Magnification: 5.7~7X

9.Angle of field of view: 10°20'

10.Resolution: 3"

11. Dimension:168x110x45(mm)

12.Total weight: 200kgs

13.Visual range: 15~30cm

14.Foundation’s round level: 8"/2mm

15.Power supply for tube: 3.4~4.2V,2.1W

16.Switch power: 1~10A

17.Lighting: cold light (with adjustable intensity)
