Colimador Optico W420-F6

SOUTHGEOSYSTEMS
W420F6-A2502588
kg
  • Descripción
  • Mas Info
  • Especificaciones

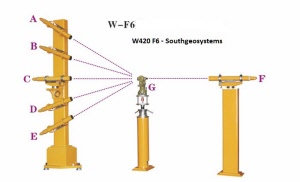

Colimador Optico W420-F6
1.Micro adjusting range: </=20"
2.Plummet collimator: Far target >1m
3.Total weight: 200kgs

Colimador Optico W420-F6,Colimador para estaciones totales, teodolitos, y Niveles Opticos
Colimador Optico W420-F6,Colimador para estaciones totales, Colimador para teodolitos, Colimador Optico para estaciones totales
W426-F6:

SPECIFICATION:

1.Number of collimator tube: 6pcs

2.Focus: 420mm

3.Reticle’s division value: 60"

4.Shortest target: 2m

5.Medium and far target: ∞

6.Micro adjusting range: ≤ 20"

7.Micro adjusting level: 10"/2mm

8.Color of lighting source: Green

9.Power supply for tube: 4.2~5V

10.Lifting range of the lifting platform: 300mm

11.Diameter of the platform: 180mm

12.Length of the pillar: 800mm

13.The light bore reserved in the pillar.

14.Plummet collimator: Far target >1m

15.Viewing distance: ≥800mm

16.Total weight: 200kgs
