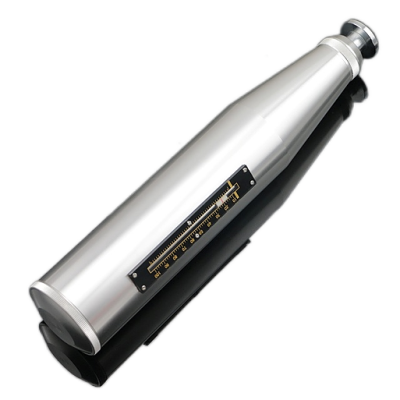

Esclerometro SGS HT 75

SOUTHGEOSYSTEMS
SGS-HT-75-A40085
excl. Entrega kg
Incluir en la cesta
  • Descripción
  • Caracteristicas

Esclerometro SGS HT 75 para ladrillos, y material ligero,Pruebe Hammer HT-75B, envíe al estándar de GB / T50315-2000, el instrumento se utiliza para probar material ligero, como ladrillo, hormigón liviano, etc.

SOUTHGEOSYSTEMS
Esclerometro SGS HT 75 para ladrillos, y material ligero, Pruebe Hammer HT-75B, envíe al estándar de GB / T50315-2000, el instrumento se utiliza para probar material ligero, como ladrillo, hormigón liviano, etc.

1)Center rod use imported material, high precision, wear proof;

2)Shell use polymer composites with high elasticity and perfect hand feel, protecting instrument from damage on site test work and prolong use life;

3)Pointer slider is outside ring structure, easy to adjust friction, and assure equal friction between pointer slider and axis. And assure the precision of instrument, compare with similar other brand product, it’s good precision, longer use life and better price. Specially suitable for brick factory or brick user

Parameter:

Standard impact energy: 0.735J

Stroke of rebound hammer: 75mm

Friction of pointer slider: 0.5N±0.1N

Sphere radius of rebound pole SR: 25mm±1mm

verage rebound value on steel anvil: 74±2

Size: Φ54*268mm

Weight: ≈1KG
