HT 225-V

Esclerometro Digital HT225-v

HT225-v
kg
Incluir en la cesta
  • Descripción
  • Mas
  • Especificaciones

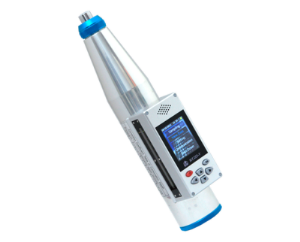

Digital Hammer Test HT225-v, Test hammer HT225-V submitted to GB /T9138-1988, JJG817-93 and JGJ/T23-2001 standards. The instrument is useful for quality Inspection Company, site testing or sampling and laboratory center, don’t have to manual calculation, machine automatically compute, grade and printing

HT225-v Integrated Voice Digital Test Hammer

Traits:

1)The test hammer is combined with displayer part, easy to operate and make your work efficient.)

2) LCD color screen 176*220 (other manufacturers’ are black and white, low resolution))

3)Large capacity rechargeable lithium battery, economic and environment protection, long use life, better than other market product (one time use battery)

4)No-touch metal reflect grating and reflect compile sensor, better accuracy. (other manufacturer’s are ordinary transmission grating and optical coupler, or carbon film and brush touch sensor)

5)Born with voice service, color screen display and traditional scale, more accurate, in case power off when site work, we still can make use of the scale to continue work. Voice service can make your work efficient. (similar product of other manufacturers’ in market no voice service and scale)

6)USB interface, easy to connect with PC

7)The software can set rebound value from upper limit to lower limit, and the abnormal date will be deleted automatically.

8) Equipped with infrared portable printer, on site print test report.

9)Some important components are processed from imported materials, after our excellent processing, the instrument get longer use life, better than other similar products

Parameters

1.test range:10-60Mpa

2.standard impact energy:2.207J。

3.rigidity of tension spring:785N/M。

4.stroke of rebound hammer: 75mm。

5.error range for digital displayer:≤±0.5(the difference between displayer and scale)

6.average rebound hammer on steel anvil Rm:80±2。

7.Screen:16bit true color,176*220resolution,5 classes back light choose。

8.Storage:255*100*16=408000 test points, customer can add up to 20 test curves。

9.Power source:3.6V/1300mAH Li battery,charger adapter 5V/2A。under largest back light and shut down the voice, last work 13 hours。

10.Power consumption:largest back light≈100mA(voice shut down)。

11.connect interface:USB2.0

12.weight:1.1Kg。

Compare between HT225-V digital test hammer and other digital test hammer

HT225-v
Items Our HT225-V Similar product in market Our advantage
Displayer part and test hammer integrated Divided We are pioneer in China, make test work efficient
Test method of sensor Metal reflect grating, reflect compile sensor Ordinary transmission grating, optical coupler sensor Our product equipped with advanced sensor, make the test accurate, our tech is the most advanced in China
Screen of displayer True color LCD 176*220 resolution Black and white We are the first corporate that take the color LCD into test hammer
Voice function Yes No We are more considering in user
Voice function Large capacity Li battery Alkaline battery Reusable, environmental protect and long use life

 After careful comparing all the test hammers in market. , test hammer manufactured by us is better, and you will find our price is better too
