Mini Light Meter MT-902

SOUTHGEOSYSTEMS

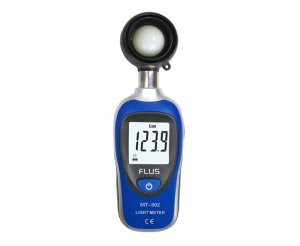

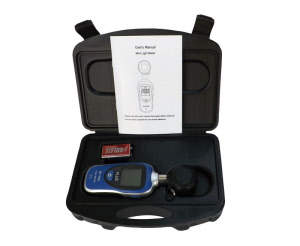

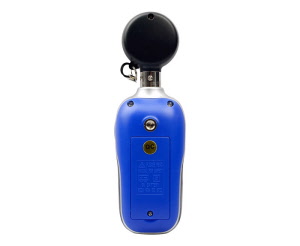

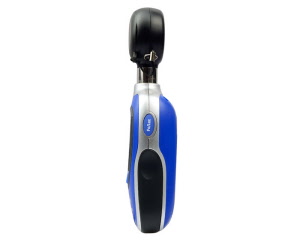

Mini Light Meter MT-902

◆ Measuring range: 0Lux~200Klux/0Fc~20KFc (Measurement repeatability).
◆ Automatically revise parameters for nonstandard illumination.
◆ Selectable measurement units LUX/FC.
◆ MAX/MIN record.
◆ Large LCD display.
◆ Backlight LCD display, facilitating the operation in the dark places.
◆ Automatic measurement.
◆ Low battery indication.
◆ Meter automatically shuts down after approx. 15 minutes of inactivity.

MT-902-EN

Display

4 digits LCD display

Measuring range

0 Lux200K Lux, 0Fc20KFc

Spectral response

CIE photopicCIE human eye response curve

Over range indication

LCD displays "-OL-" or "-LO-"

Spectral accuracy

CIE Vλfunction(f1’6%, f2’ 2%)

Accuracy

±3%rdg±0.5%f.s.(<10,000Lux)±4% rdg±10dgts.(>10,000Lux)

Sampling rate

2 times per second

Photo detector

Silicon photo-diode with spectral response filter

Battery life

at least 60 hours

Operating conditions

Temperature:-20~60

Humidity: 10%~90%RH

Storage conditions

Temperature: -20~ 60

Humidity: 10%~75%RH

Power supply

One 9V battery, 006P, NEDA1604 or IEC6F22

Dimension(L*W*H)

172 * 55 * 38mm

Weight

88g
