CK102 series of quantitative detection of crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width.

Fessurimetro Digitale CK102

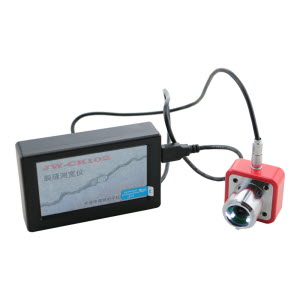

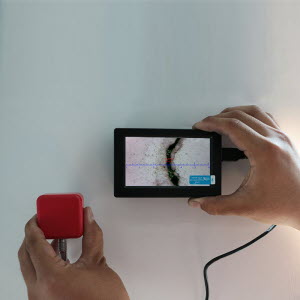

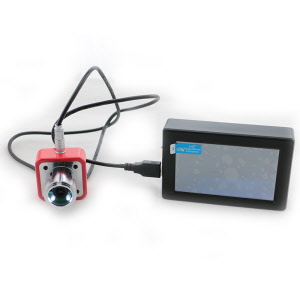

Equipment mainly consists of a handheld color LCD screen host, color microscopic amplification probe (with 1.5 m connection cable) constitutes a measurement program automatically scans the capture cracks and crack width values in real-time display on the screen, can also be the need to crack take pictures (cracks in the photo while preserving fracture images, the width of the data, scales, to enlarge the image information) of the factor and the crack number, crack photo as a standard BMP format and stored directly to any U disk to facilitate further image analysis of the user or print archive

CK10 series of crack width gauge

First, The features
1. An automatic interpretation of the crack width, directly to the crack width values are displayed on the screen;
2. Automatic shooting crack photos, real-time image display;
3. Stored photos, data can be playback viewing;
4. The option of using a variety of magnification probe test range can reach 0-8mm;
5. probe (camera) comes with lighting fixtures, work around the clock, from the light changes;
6.Handheld host of engineering plastic, lightweight and beautiful, strong and durable;
7.Simple alignment of cracks can be automatically reading, without any set up, fool operation;
8.Crack photo as a standard BMP format, direct shoot storage to any U disk / SD card;
9.The only in the cracks in the photo while preserving fracture images, the width of the data, scales, zoom factor and the crack number (see below);
10 .host and the probe share a lithium battery-powered.
11 .provides three kinds of different features and models are available, and scalable to meet the needs of different users;
12. reference specification: GJG125-99 "dangerous building appraisal standards".



1.The maximum detection range of 0-8mm;
2.Accuracy: better than 1mm;
3.Magnification: 40 times / 20 times / 13 times / 10 times, optional;
4. 40 times the probe:
  Automatic reading of the measuring range : 0.01-2 .1 mm;
  Automatic reading accuracy: better than 0.01mm 0.007mm) (20   times the probe);
5. 20 times the probe:
  Automatic reading of the measuring range :0.01-4 .2 mm;
  Automatic reading accuracy: better than 0.02mm 0.013mm) (20 times the probe);
6.The Operating Temperature: -20 ~ 60 ° C
7.Host Interface: standard USB;
8. The storage media: can be stored for more than 3000 photos (SD Card is free to expand);
9. Image storage format: BMP format, 24 bit color / 320 * 240;
10. Power supply: lithium battery, standby time: 18 hours;
11.Size: Host 113x70x16.5mm;
12. Probe: 48x56x58mm;
13.Weight: host 100 grams, 100 grams of the probe.
    The CK10 measured width instrument software is divided into three kinds of models (Note: The purchase of a common user software can also upgrade to the camera or intelligent, more economical and) practical)

CK101-CK102

 Name

Model

Function and configuration

Cracks measured width gauge

CK101 (ordinary type)

Functions: electronic scale ruler + artificial reading

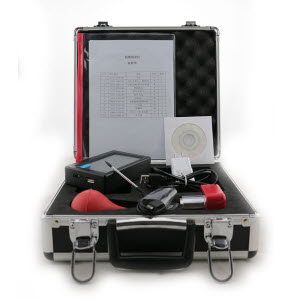

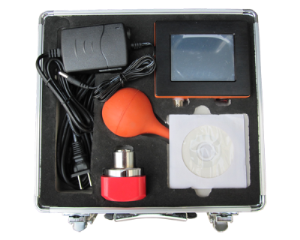

Configuration: a handheld host, a probe (with 1.5 m cable), a quick charger, blowing a balloon, an aluminum carrying case, manual and warranty card 1

CK102

(camera type)

Functions: electronic scale ruler + artificial reading + photographed + pictures playback
Configuration: a handheld host, a probe (with 1.5 m cable), a quick charger, blowing a balloon, an aluminum carrying case, manual and warranty card 1

CK101 (Smart)

Function: Intelligent Recognition + Automatic reading + electronic scale ruler + photographed + picture playback
Configuration: a handheld host, a probe (with 1.5 m cable), a quick charger, blowing a balloon, an aluminum carrying case, manual and warranty card 1

Option 1

4mm probe

4mm probe (with 1.5 m cable), the width of the detection range is extended to 4mm

Option 2

6mm probe

6mm probe (with 1.5 m cable), the width of the detection range is extended to 6mm
