Sistema di Collimazione SGS FF550CCD - F420CCD per livelli Laser e Teodoliti

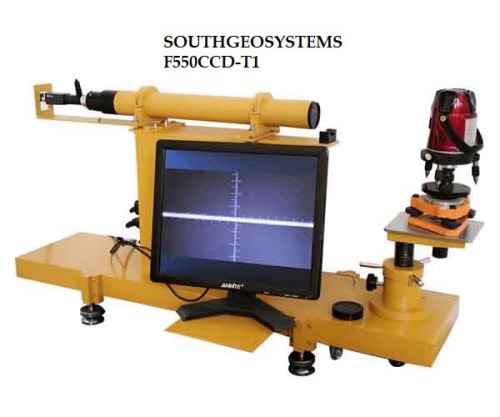

Sistema di Collimazione SGS FF550CCD - F420CCD

Sistema di Collimazione SGS FF550CCD - F420CCD per livelli Laser e Teodoliti

FEATURE:

  1. The CCD is made by IMAGINGSOURCE Germany.
  2.  The operation software and the anylize software in English are included.
  3. he digital collimator tube is the upgrade of the optical collimator tube, it can replace the optical collimator tube.
  4. It can output the images of the laser line/point in the reticle on the computer. Then we can display,store and analyze the images.
  5. View the laser line/point on the computer display, the laser’s exposure and hurt to the abserver will be avoided.
  6. The digital collimator tubes can be assembled together to fullfil the calibration the laser instruments and optical instruments, such as rotary laser level,multi-line laser, laser plummet,autolevel, theodolite and total station.
CCD-En: SPECIFICATION:

*OPTICAL TUBE:

Tube focus: F550CCD: 550mm; F420CD:420mm
Tube Aperture: F550CCD:55mm; F420CCD:53mm

*DIGITAL EYEPIECE

TYPE OF CCD: Industrial Camera
CCD size: 1/2inch or 1/3inch

PIXEL: 3MILLION

Focus:45mm
Lens type: Telecentric Lens
Light source: LED
CCD Power input: 6v
LED Power input: 3.5V
