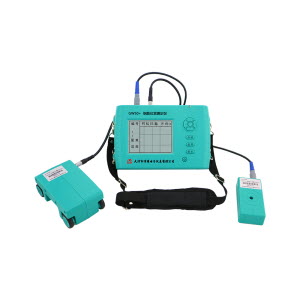

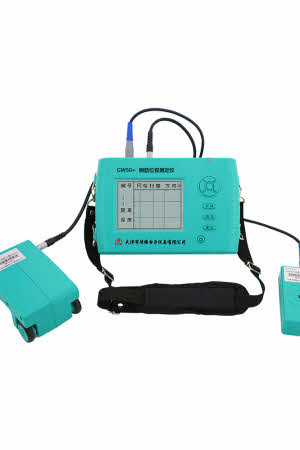

Pacometro Sgs

Pacometro Sgs
investigation depth could reach 180mm
Single comprehensive probe. No need to replace during test.
back-lit screen let instrument can be normal used under the condition of insufficient light
Machine software is complete .The report could be printed automatically connecting with computer

Work environment condition

No strong alternating electromagnetic field
No corrosive gas in the air.
Avoid larger vibration and impact
Avoid the LCD panel contact with sunlight directly

Product usage
Testing concrete cover thickness
Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.
Estimation bar diameter
Detection of Cable and Plumbing pipe
Rebar Location-En

Bar diameter application range(mm)

Φ6 – Φ50

maximum value permissible error of Bar diameter

≤±1

Protective layer thickness measuring range



The first measuring range (mm)

6 - 90

The second measuring range (mm)

7-180

The maximum error of reinforced protective layer thickness test value



The first measuring range (mm)

The second measuring range (mm)



6 - 59

7 - 79

≤±1

60 - 69

80 - 119

≤±2

70 -90

120 - 180

≤±4

Standard Delivery

Optional Accessory

Main unit, Software

USB connecting cable

Power charger

Carborundum stone

Instruction manual

Warranty card

1

1

1

1

1

1

Printer

Power Charger for printer

(9V/2V
