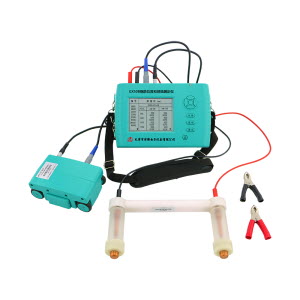

Rebar Locator & Corrosion Detector

Pacometro e Rilevatore di Corrosione

GX50B-1600
kg
Aggiungere al carrello
  • Descrizione
  • Più
  • Specificazioni

Pacometro e Rilevatore di Corrosione

Pacometro e Rilevatore di Corrosione

Integrate the functions of rebar position test , concrete thickness test, rebar diameter test and rebar corrosion degree test into one product.

Product usage

Testing concrete cover thickness

Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.

Estimation bar diameter

Detection of Cable and Plumbing pipe

Detection of steel corrosion extent

Standard Delivery

Main unit,

Software,

USB connecting

Cable,

Instruction manual,

Test probe

Probe connecting line

Probe cart

Rebar Locator-Corrosion Detector-En

Specification of Rebar locator

Bar diameter application range(mm)

Φ6 – Φ50

maximum value permissible error of Bar diameter

≤±1

Protective layer thickness measuring range



The first measuring range (mm)

6 - 90

The second measuring range (mm)

7-180

The maximum error of reinforced protective layer thickness test value



The first measuring range (mm)

The second measuring range (mm)



6 - 59

7 - 79

≤±1

60 - 69

80 - 119

≤±2

70 -90

120 - 180

≤±4

Work temperature

-10 - +40

relative humidity RH

< 90%

power supply mode

Alkaline cell X 6







































Specification of Rebar corrosion system

Measuring Potential

±2000mV

Test accuracy

± 1mV

Measuring Space

1-99 cm (adjustable)

Ambient Temperature

-10~+40

Environment Requirement

to avoid direct exposure to the sun for a long time.

Relative Humidity

<90%RH

Electromagnetic Interference

no strong alternating electromagnetic field
