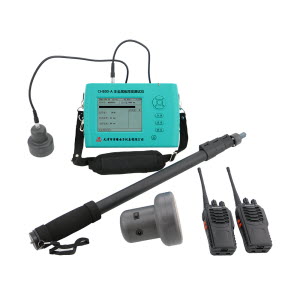

Testing concrete floor thickness, Detection nonmetallic material thickness(Wall, beam, pillar, lumber, ceramic)

Testing concrete floor thickness

Features

<!--[if !supportLists]-->1.     <!--[endif]-->Host and receiving probe adopt fission style to decrease contact surface of receiving probe and floor

<!--[if !supportLists]-->2.     <!--[endif]-->Intelligent read result and automatic lock and real-time display thickness value reduce the human error and labor intensity.

<!--[if !supportLists]-->3.     <!--[endif]-->Emission probe and receiving probe is wireless communication mode. No need to contact any wire.

<!--[if !supportLists]-->4.     <!--[endif]-->Nondestructive testing of double surfaces. Floor does not need any treatment. No need coupling agent.

<!--[if !supportLists]-->5.     <!--[endif]-->High test speed. Average 3 minutes could test 3-5 test points.

<!--[if !supportLists]-->6.     <!--[endif]-->High test precision. Instrument provides data to guide to aim at the probe.

<!--[if !supportLists]-->7.     <!--[endif]-->Thickness display directly. No need analysis conversion. The results can be stored and printed.

Work environment condition

Ambient temperature-10 — +40 Avoid long time sun direct explosion

Relative humidity (RH)

Electromagnetic interference (EMI)

No strong alternating electromagnetic field

CH800-En

Number

Items

SPCE

1

Thickness test range (mm)

40—600

2

Thickness test accuracy 40—400(mm)

≤±1mm

3

Thickness test accuracy 401—600 (mm)

≤±2mm

4

Data storage capacity

40000 test point data

5

Size (mm)

270×150×45

6

transmitting probe (mm)

Ф100×120

7

Receiving probe (mm)

Ф60×80

8

Power Supply

9VDC Alkaline cell X 6

9

Emission probe power

9VDC Built-in high energy lithium battery

10

interface type

USB-B connector

11

lengthening bar Aluminium alloy

4 poles Ф25×600mm

12

Size (mm)

220×145×60
