Piombo Laser DRJ 1A

SOUTHGEOSYSTEMS
DRJ1A-A400199
kg
Aggiungere al carrello
  • Descrizione
  • Altri Dettagli
  • Specificazioni

Il Piombo Laser zenitale DRJ 1A è disegnato per essere usato in costruzioni, controllo di deformazioni, controllo di verticalità in edificazioni, verifica di ascensori, torri di acqua, comignoli, etc.

SOUTHGEOSYSTEMS | KOLIDA
Piombo Laser Kolida ML 401

Plummet Laser Kolida ML 401

Specification:

Accuracy

1/45000

Effective aperture

30mm

Magnification

25x

Field of wiev

1'30'

Minimum focus distance

0.5mt


Inverted

Wave lenght

635nm

Laser Class

Class IIIA

Plummet accuracy

0.5 mm/1.5m

Laser Operation Range

Power suppy 2AA batteries

Day

150mt

Night

500mt

working range

40m maximum 4mm 100m Maximum 5mm

Deviation optical / laser axis

2"

Mean square plummet error

5"

weight

2.8kg

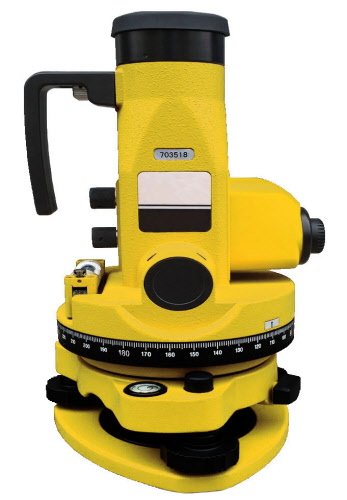

GZ200-EN
SPECIFICATION:

IMAGEERECT
FIELD OF VIEW1º50´
MININIUM FOCUS DISTANCE0.8M
EFFECTIVE APERTURE36MM
MEASUREMENT ACCURRACY
UPWARD1/45000
DOWNWARD1/2000
UPWARD LASER
WAVE LENGTH635NM
LASER RANGE150M(CLOUDY DAY)
250M(NIGHT)
100M(VISIBLE FROM EYEPIECE)
LASER SPOT SIZE3MM/50M
OPTICAL PLUMMET
IMAGEERECT
MAGNIFICATION3X
ACCURRACY±0.8MM/1.5M
FOCUS RANGE0.5M TO
LEVEL SENSITIVE
PLATE LEVEL20"/2MM
CIRCLE LEVEL8'/2MM
POWER SUPPLY
BATTERY 2X1.5V ALKALINE BATTERY
VOLTAGE3V
WORKING TIME10HOURS
OTHERS
RAIN/DUSTIP54
OPERATION TEMPERATION­20℃ TO +50℃
DIMENSION130X130X260MM
WEIGHT3.2KGS
