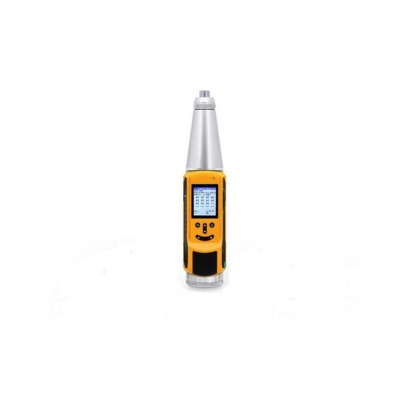

Sclerometro Digitale SGS TEM912

SOUTHGEOSYSTEMS
TEM912-A400250
kg
Aggiungere al carrello
  • Descrizione
  • Altri Dettagli
  • Specificazioni

Digital Hammer Test SGS TEM912. TEM912 digital rebound tester, digital part adopts modular design and non-contact grating optocoupler sensor collection

Digital Hammer Test TEM912

TEM912 digital rebound tester, digital part adopts modular design and non-contact grating optocoupler sensor collection, with automatic recording, automatic storage, automatic calculation, automatic data processing; and voice broadcast; later data analysis and processing, according to the specifications automatically Data analysis, test report. It improves the work efficiency of rebound testing, reduces the labor intensity of testing personnel, embodies the scientificity, advancedness, fairness and accuracy of rebound testing, and leads non-destructive testing to a new stage of digitization and intelligence.

Rebound Hammer Functions

1) Automatically display and record the rebound value, and calculate the converted strength value of each measurement area and the
estimated strength of the component according to the relevant testing specifications;

2) 2.0-inch color LCD screen (220×176 pixels), the detection data can be clearly seen in any situation;

3) The color digital module and mechanical rebound meter can be disassembled at will;

4)Silicone button design, flexible use; ergonomic design, comfortable and warm heart; streamlined and elegant design, smile look
and feel;

5) Support display in English;

6) Multiple data transmission modes, easy to operate, accurate and convenient;

7) The carbonization value of the measurement area can be input 3 times, and the average value is automatically calculated;

TEM912
Specification
Standard impact energy
2.207J
Rigidity of tension spring
785.0±40.0(N/m)
Pointer length:
20.0±0.2(mm)
Pointer friction
0.65±0.15(N)
Working length of bounce tension spring
61.5.0±0.3(mm)
Spherical radius of the end of the bounce rod
25±1.0(mm)
Impact Hammer Impact Length
75±0.3
Anvil rate setting
80±2(Our factory products are controlled between 80-81
Error range for digital displayer
<=+-1(the difference between displayer and scale)
Display
2.0inch (220×176 pixels )
Output Mode
Cable (Update version have WIFI, Bluetooth)
Storage Capacity
2000 pcs, 640 thousand data
Turn off
Automatic turn off without operation
Power supply
3.7V Lithium battery, 1050 mA
Port
USB (update type Bluetooth and WIFI. )
Collection Mode
Automatic display and record data
Size(mm)
150×62×39
Weight(kg)
0.1kg(include battery)
Color
Yellow
Rebound Hammer type
Digital concrete test hammer
