Nails and accessories
Nails and accessories
Standard Nails
Tempered steel surveying nail. Use: marking on hard surfaces. (certified design)
ex Shipping kg
Standard Surveying nail with washer
Standard Surveying nail with washer.  Use: marking on pavements or bitumen-based surfaces. Fixed using a hammer. Material: high strength, electro-zinc plated steel. Diameter: 7.5 mm Lengths: 45, 60 and 100 mm. Head Diameter: 16 mm with centring point. Washer diameter: 30 mm. Packed in bags of 50.
ex Shipping kg
Steel reference marks
Steel reference marks. Use: marking on macadamised shoulders.Material: High strength, electro-zinc plated steel.Diameter: 14 mm, L: 150 and 200 mm. Head diameter: 22 mm with centring point. Packed in bags of 10
ex Shipping kg
14150-047
Add to cart

(with centre point)For use in very hard ground, either as a stand-alone marker or with a marker head. 200 mm long with 15 mm shaft and 30 mm head.In bags of 10 pieces.

ex Shipping kg
16200-047
Add to cart
Brass marks
Use: marking on walls, facades, etc.Material: brass. Delivered with plastic plug. Drilled with a front hole of diameter 12 mm. Head diameter: 30 mm with centring point. L: 45 mm. Packed in bags of 10
ex Shipping kg
3043-047
Add to cart
Option
Hardened striated nail with “calibel” washer, Use: marking on hard surface. Fixed with a hammer.Material: High Strength, electro-zinc plated steel. Diameter: 4 mm,L : 25 mm Head, diameter : 10 mm with centring point. “Calibel washer”, diameter: 25 mm
ex Shipping kg
Option
Hardened striated nail with “calibel” washer, Use: marking on hard surface. Fixed with a hammer.Material: High Strength, electro-zinc plated steel. Diameter: 4 mm,L : 30 mm Head, diameter : 10 mm with centring point. “Calibel washer”
ex Shipping kg
Made in either black laquered or natural aluminium. Enables the surveyor to inscribe any desired information, such as text, logos etc. in permanent engraving. Secured by the survey nail, with or without a washer . 68 mm dia.
ex Shipping kg
Option

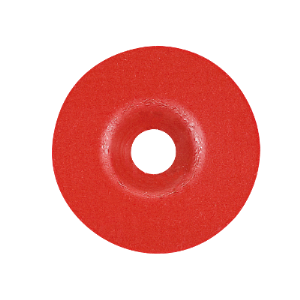

Calibel washers for nail,Use: marking on hard surface. Fixed with a hammer.Material: High Strength, electro-zinc plated steel. Diameter: 4 mm,L : 25 mm Head, diameter : 10 mm with centring point.“Calibel washer”, diameter: 25 mmNails and washers are packed separately in bags of 100.
ex Shipping kg
Washer for tempered steel nail
ex Shipping kg
