Pipeline Inspection Camera System

Pipeline Inspection Camera System W3-CMP3188
SOUTHGEOSYSTEMS
W3-CMP3188D
ex Shipping kg
Add to cart
  • Description
  • Future

Pipe Inspection Camera System with 4.8mm Fyberglass cable and packed in Aluminium Case

SOUTHGEOSYSTEMS

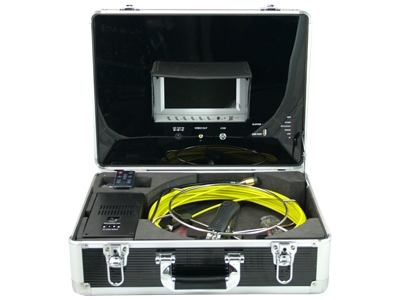

Pipe Drain Sewer Inspection Camera system, 20M Cable, 7" LCD Monitor DVR Controller, in Alluminum Box

22mm Detachable Waterproof Camera Head with Sapphire Lens

5.2mm Flexible Fyberglass Push Rod, Standard Length: 20M(Optional Other Length)

7" LCD Monitor DVR Controller with Li-ion Rechargeable Battery Box

Dual Model A/V Recording and Snapshot via USB Drive & TF-card

Remote Control & Panel Manual Switch Dual Mode Operation

With Centring Skid

All in Alluminum Box

Optional: with 30M Cable: + USD30.00; with 40M Cable: + USD240.00

Optional; digital Meter Counter: + USD320.00

Optional: Upgrade to 10" LCD Monitor: + USD200.00

Optional: camera head with built-in Sonde transmitter: + USD320.00

Application Possibility:
Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection; Maintenance of Plumbing and Wiring behind walls

Camera Specifications
Color CCD Camera, 60°Camera vision angle
Sapphire glass lens cover,
8 White LED
Diameter of camera 22 mm
6" total length including the Spring & ConnectorCable

Wheel Specifications
Stainless wheel with special structure
connecter to monitor
65 ft fiberglass rod cable
Gold point touch connecter to Camera
5-3/4" rubber covered handle
12-4/5" wheel diameter

Cable Length: 20M, 30M , 40M Φ4.5mm Cable Optional

Monitor Specifications
7" TFT LCD Monitor,320 x 960 pixel
AC/DC power supply
Lion Charging battery
-20ºF~+120ºF operating temperature
5"(H) x 7-4/5"(W) x 1"(D)

Shipping Information
Each set in an aluminium case ,
2 sets in a master carton
Aluminium Case size :48x19x42cm
Carton gross weight: 16.5 Kg (2 sets)
Carton Size: 50x40x45cm
