World’s first: The Leica DISTO™ D810 touch is the first laser distance meter world-wide with a touch screen, allowing for quick and intuitive operation.

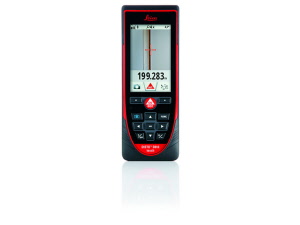

Laser Distancemeter Disto Leica D810

Laser Distancemeter Disto Leica D810

  Simply touch-it!
Large touch screen for quick and intuitive operation. Using common gestures such as swipe and zoom with two fingers, all the functions are simply and easily accessible. Measurements can also be taken using the touch screen. This avoids unintentionally moving the Leica DISTO™ D810 touch during the measurement.

    Measure with a picture
It has never been easier to determine the width, height, area or even the diameter of an object. One measurement at right angles to the object is all it takes. Then the desired dimension is marked using two arrows in the picture and the measured value appears in the display. In addition to the zoom stages on the Pointfinder, an overview camera is available for large objects.

    Documentation using pictures
The camera function on the Leica DISTO™ D810 touch can be used to create pictures or screen shots for recording purposes, which can then be downloaded to  a computer via the USB interface. No details  about the measured target points need be lost.

    Highest precision
The Leica DISTO™ D810 touch offers a number of indirect measuring functions. Due to the specially developed tilt sensor the results are very precise.  Even more accurate results can be achieved using the Leica FTA360 tripod adapter with its fine adjustment allowing exact targeting.

    Flexible data transfer
In keypad mode, you can link your Leica DISTO™ D810 touch to your computer and send measured values in the form of a keyboard entry to any program. This provides a high degree of flexibility.

    Bluetooth® Smart and new free App – „Leica DISTO™ sketch“
The further developed  App "Leica DISTO™ sketch" is the ideal link between  the Leica DISTO™ with Bluetooth® Smart and a smartphone or a tablet. It allows you to create fast scaled drawings, dimension objects in pictures and checking construction drawings. It is even possible to integrate detailed sketches in an existing sketch, e.g. to a plan view. This allows you to have all the information together  in a single document. The files can then be sent by e-mail directly to the office.

    ISO Standard 16331-1 – The standard for laser distance meters
Range and accuracy of laser distance meters depend on light conditions and the reflectiveness of the measuring target. For Leica Geosystems it is important that the instruments not only perform under perfect laboratory conditions, but above all under the kind of everyday working conditions encountered on construction sites. This is why, working together with external experts, the company have developed a standard by which laser distance meters can be tested and compared with each other.

Another revolutionary feature allows for measurements with pictures. Due to the integrated camera it is also possible to take pictures and download them with the USB-interface to a computer. The high functionality is perfectly completed by the smart free app “Leica DISTO™ sketch

  • Touchscreen
  • Pointfinder with 4x zoom and overview camera
  • Camera function with USB download
  • Measure with a picture
  • Precise 360° tilt sensor
  • Smart Horizontal Mode™
  • Height tracking
  • Bluetooth® Smart
  • Free App – Leica DISTO™ sketch
  • Li-Ion battery
  • Leica Disto D810:
    Technical specifications:
    Typical measuring accuracy ± 1 mm
    Range up to 200 m
    Measuring units m, ft, in
    Power Range Technology™
    Distance in m
    Ø of the laser dot in mm
    10, 50, 100 m
    6, 30, 60 mm
    Tilt sensor measuring range 360°
    Pointfinder with 4x zoom
    Overview camera
    Photograph file format .jpg
    Memory 30 displays
    Free software for Windows
    Free App iOS / Android
    Data interface* Bluetooth® Smart
    Measurements per set of batteries up to 4000**
    Multifunctional end-piece automatic recognition
    Batteries Li-ion rechargeable
    Tripod thread
    Protection class IP 54
    Dimensions 164x61x31 mm
    Weight with batteries 238 g

    *) System requirements and other details can be found at http://www.disto.com
    **) Reduced in Bluetooth® mode

    Functions:
    Distance measurement
    Minimum / maximum measurement
    Area / volume measurement
    Trapezium function
    Pythagoras functions 2 points and 3 points
    Inclination tracking
    Smart Horizontal Mode™
    Sloped object measurement
    Height tracking
    Height profile measurements
    Stake-out function a/b
    Pictures / screenshots
    Gallery with USB-download
    Measure with the picture
    Compass
    Calculator

    Supported iOS devices: Wireless connectivity  Data transfer
    iPhone 5 Bluetooth® 4.0 with App or keypad mode*
    iPhone 4S Bluetooth® 4.0 with App or keypad mode*
    iPad mini Bluetooth® 4.0 with App or keypad mode*
    iPad 3 Bluetooth® 4.0 with App or keypad mode*
    iPad 4 Bluetooth® 4.0 with App or keypad mode*
    iPod touch (5th Generation) Bluetooth® 4.0 with App or keypad mode*
    Smartphones and tablets with An-droid 4.3 or higher Bluetooth® 4.0 with App or keypad mode*
    Tablets with Windows 8 or higher Bluetooth® 4.0 with App or keypad mode*

    * Leica DISTO™ D810 touch has been connected with the device like a Bluetooth® keypad and transfers values to a cursor position.
