Optical Collimator F550/TD-3

SOUTHGEOSYSTEMS
F550TD3-A2501299
kg
  • Description
  • More
  • Specifications

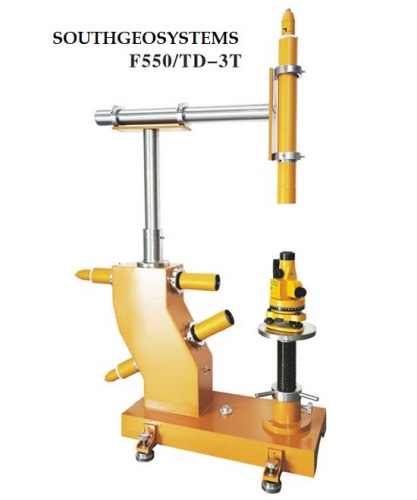

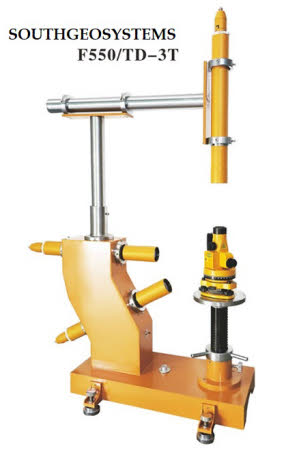

F550/TD-3 is for calibration and maintenance of the autolevel,theodolite,ttotal station and laser/optical plummet

Optical Collimator F550/TD-3, Collimator for total stations, theodolites, Levels and Theodolites

Main Technical Parameters:



  Tube length: 565mm

  Tube focus: 550mm

  Tube Aperture: 57mm

  Resolution: 3"

  Angle of field of view: 10°20'

  Accuracy(Reticle’s division value): 30"

  Tubes position: Horizontal(0°),vertical(90°),elevation(30°)

  Adjusting range of the tubes: Horizontal:≥60´, Vertical:≥60



  Magnification: 5.7~7X

  The shortest target of the level tube: 2m

  The far target: ∞

  Lifting range of the lifting platform: 300mm

  Max. Loading weight on support column: 40kgs

  Round level(On the foundation of the front column): 8"/2mm,

  Power supply for tube: 4.5~6V,2.1W

  Switch power: 1~10A

  Lighting source: cold light (with adjustable intensity), green



  Dimension: Length110cm,height235cm,width42cm

W550-3TD

Collimator Specifications

W550-3TD

Focal Length

550mm

Effective Aperture

55mm

Field of View

2°30

Min.Graduation

20

Shortest Stadia

2m

Angle between two Tubes

30°±15'

Sensitivity of Plate Bubble

20"/2mm

Graduation Range

HZ: ±30'    V: ±30'

Operating Height

300mm
