Rebar Locator & Corrosion Detector GX50B

Add to cart
  • Description
  • More
  • Specifications

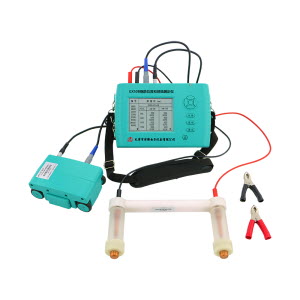

Rebar Locator & Corrosion Detector

Rebar Locator & Corrosion Detector

Integrate the functions of rebar position test , concrete thickness test, rebar diameter test and rebar corrosion degree test into one product.

Product usage

Testing concrete cover thickness

Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.

Estimation bar diameter

Detection of Cable and Plumbing pipe

Detection of steel corrosion extent

Standard Delivery

Main unit,


USB connecting


Instruction manual,

Test probe

Probe connecting line

Probe cart

Rebar Locator-Corrosion Detector-En

Specification of Rebar locator

Bar diameter application range(mm)

Φ6 – Φ50

maximum value permissible error of Bar diameter


Protective layer thickness measuring range


The first measuring range (mm)

6 - 90

The second measuring range (mm)


The maximum error of reinforced protective layer thickness test value


The first measuring range (mm)

The second measuring range (mm)


6 - 59

7 - 79


60 - 69

80 - 119


70 -90

120 - 180


Work temperature

-10 - +40

relative humidity RH

< 90%

power supply mode

Alkaline cell X 6




















Specification of Rebar corrosion system

Measuring Potential


Test accuracy

± 1mV

Measuring Space

1-99 cm (adjustable)

Ambient Temperature


Environment Requirement

to avoid direct exposure to the sun for a long time.

Relative Humidity


Electromagnetic Interference

no strong alternating electromagnetic field
