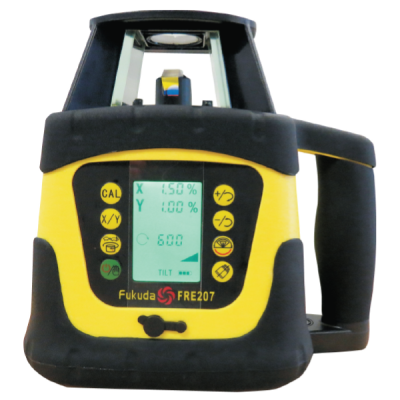

Rotary Laser FRE 207

SOUTHGEOSYSTEMS
FRE207-A400389
kg
Add to cart
  • Description
  • More

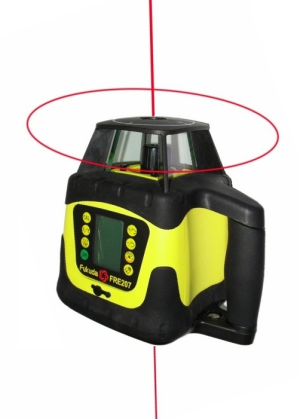

Adopt self-leveling (sensor leveling),wide leveling range, high accuracy,high stability. Upright setting:Emit one Horizontal fan and a plumb line,with down dot. Both indoor and outdoor.

Rotary Laser FRE 207
Specification:Leveling Accuracy Horizontal ±20″,V ±20″
Leveling Range ±5º
Measuring Range Diameter: 500m         (With laser detector)
Spinning Speed 60、120、300、600 r.p.m.
Direction scanning: 10°;45°;90°;180°°
Light Source Laser Diode       wavelength: 635nm
Laser Standard Class II
Remote Distance Approximately 40m indoor,15m outdoor
Working Temperature -20℃-- +50℃(-4ºF-- +122ºF)
Power supply DC 4.8-6V       (4 *AA NI-MH batteries)
Hours in continuous use Approximately 20 hours
Water-proof IP 64
Dimension 60(L)X 160(W)X 185(h)mm
Weight 3.5kg
