Optical Theodolite

Theodolite J2-2
SOUTHGEOSYSTEMS
J2-2A2501000
ex Shipping kg
Add to cart
  • Description
  • Future
  • Specifications

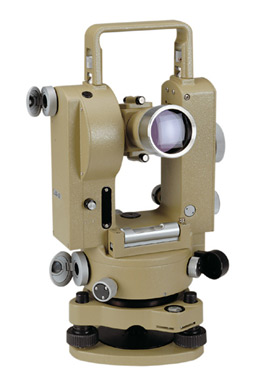

Optical Theodolite J2-2 Robust and easy to use Clear and easy scale reading, Rotatable circle, Built-in optical plummet.

SOUTHGEOSYSTEMS

Optical Theodolite J2-2  Robust and easy to use  Clear and easy scale reading, Rotatable circle, Built-in optical plummet, Available in 400 gon or 360°

Optical Theodolite J2-2
J2-2 En

Model

J2-2

Accuracy

HZ. Standard Deviation in Face Left & Face Right

±2"

V. Standard Deviation in Face Left & Face Right

±6"

Telescope


Erect

Magnification

30×

Objective Aperture

40mm

Shortest Focusing Distance

1.6m

Field of View

1°20'

Multiplication Constant

100

Additive Constant

0

Resolution Power

3"

Circle

HZ

Ø90mm

V

Ø70mm

Graduation

20'

Min. Interval

1"

Auto Vertical Index (Magnetic Damp)

Working Range

±3'

Setting Accuracy

±0.3"

Reading Microscope

HZ.

48×

V.

62×

Bubbles

Circular

8'/2mm

Plate

20"/2mm

Optical Plummet

Magnification

3×

Focusing Range

0.3-6m

Field of View

7°30'

Standard

Accessories

Adjusting Pin

Bulb

Cotton Cloth

Lens Cap

Plumb Bob

Rain Cover

Screwdriver

User Manual

Central Thread

5/8"×11

Packing Details
1pc per Carton; 11kgs per Carton;
Dimensions per Carton: 0.04CBM (47cm×28cm×30cm)
Dimensions per Carton: 0.10 CBM (53cm×36cm×53cm)
