SGS SurveyMaster

SOUTHGEOSYSTEMS
Surveymaster
ex Shipping kg
Add to cart
  • Description
  • More

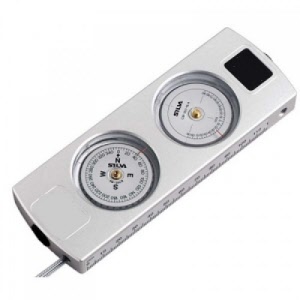

SGS SurveyMaster, this patented double instrument is a combination of the Compass and Clinometer especially well suited for professionals who need to measure vertical angles/heights and compass bearings. Typical users of this kind of instrument are: Surveyors, geologists, speleologists, miners, satellite dish installators, engineers (telecom) etc.

SGS Clino-Compass DQL8CC Brunton Type
SurveyMaster

Benefits with the SurveyMaster are:

  • Two instruments in one.
  • Very easy to read thanks to the open to light, crystal-clear scales
  • Can be equipped with any SightMaster and ClinoMaster scale to special order
  • Quick settling time thanks to the liquid damped scales
  • Extremely accurate

 The SightMaster Lensatic is equipped with a parallax-free, glass lens, 10x magnification sighting system integrated into the aluminum housing.

Capsule: Anti-static and liquid-filled for optimal dampening of the SightMaster card.

Compass card: The SurveyMaster Lensatic is equipped with an aluminum compass card with precision scale. It features a top scale for direct readings on the top of the capsule at the lubber line. It also has sapphire-jewel bearings for friction-free movement of the card, allowing fast and accurate readings.

Accuracy: +/-0.5° from true magnetic course with precision sighting. +/-1.0° from true magnetic course with direct reading at the lubber line on top of the capsule.

Clinometer card: The ClinoMaster Lensatic is equipped with an aluminum clinometer card with precision scale. It is equipped with a top scale for direct readings on the top of the capsule at the lubber line. It also has sapphire-jewel bearings for friction free movement of the card, allowing fast and accurate readings.

Accuracy: +/-0.25° from true angle with precision sighting. +/-1.0° from true angle with direct reading at the lubber line on top of the capsule.

Dimensions and weights: LA-models 160x54x16 mm. Weight: 230 g
