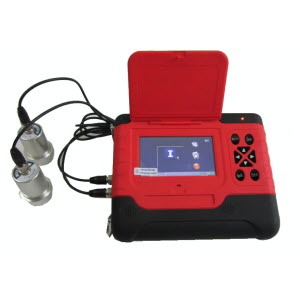

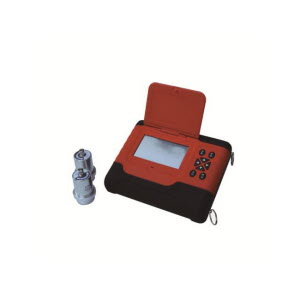

Crack Depth Sounder CS650

CS650-A2501050
ex Shipping kg
Add to cart
  • Description
  • Future
  • Specifications

The CS650 crack depth sounder is a detector for detecting the depth of cracks on non-metallic materials such as concrete.

SOUTHGEOSYSTEMS

Applications:

S650  concrete crack depth gauge is mainly widely used for crack depth measurement of bridges, tunnels, buildings and so on.

Main features:
l  Two detection methods: standard and simple depth measurement.
l  Standard ultrasonic transducer bracket, precise and adjustable; free from scene marking-out, which can greatly improve the detection efficiency.
l  Touch screen makes the operation simple and quick.
l  Whole process of testing is prompted by voice and text;
l  Friendly human-computer interactive interface
l  Various built-in various helpful files and demo videos facilitate the users to conduct skilled instrument operation.
l  4GB large-capacity SD card can store more than 100,000 data;
l  Powered by lithium batteries;
depth sounder.



Scope of application

The CS650 crack depth sounder is a detector for detecting the depth of cracks on non-metallic materials such as concrete. Under the guidance of the theory of the program, the system simplifies the test method through a large number of tests.

Applicable standard

National Standard of the People's Republic of China GB 50344-2004 "Technical Standards for Building Structure Inspection"

Features

* On-site test is simple, no need to manually interpret the acoustic parameters, directly display the crack depth;

* Test speed is fast, the result is displayed within 2-20 seconds;

*The instrument is easy to operate and can be accurately tested without the knowledge of ultrasound;

*The test accuracy is high, the maximum error is not more than 5mm or 2%-10% of the actual seam depth;

CS650-EN

Main technical parameters:

Hardware Platform

Embedded ARM9 Hardware PlatformWinCe5.0 Operating SystemTrue Color TFT Touch Screen

Crack Depth Test Range

10mm500mm

Accuracy

≤±5%

Power Supply

Rechargeable Lithium Battery

Working Time

≥28 Hours

Working Temperature

-10℃~+50℃

Working Humidity

≤90%RH
