Nonmetal ultrasonic detector CJ-10

CJ10-A3002980
kg
Add to cart
  • Description
  • More
  • Specifications

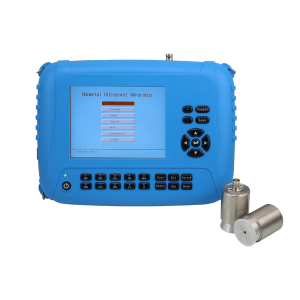

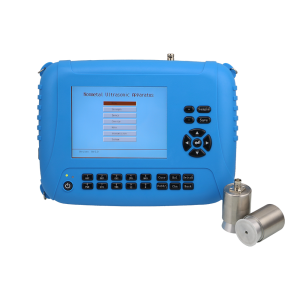

CJ-10 Nonmetal ultrasonic detector.

SGS

Specification

☆ Technology code for testing of building foundation piles JGJ 106 —2003

☆ Technical Specification of Dynamic Pile Tests for Highway Engineering JTG/TF81-01-2004

☆ Technology specification for inspection of concrete defects by ultrasonic method CECS 21:  2000

☆ Technical specification for geotechnical investigation method GB50021—2001



Performance

☆ High efficient testing. Lifting speed is more than 60m/s.( 20 cm distance )。

☆ Display the test data graphically. User can watch analyze result directly;

☆ Fast and precise Automatic judge the sound parameters. Real-time wave display to assure test efficiency;

☆ Humanized software design. Software design apply to User and construction plant. its help information ensure user handle easily;

☆ Linking the rebound apparatus directly. Detecting strength of concrete by ultrasonic-rebound combine method with linking rebound apparatus directly,and get strength of concrete in time. The functions apply for national patent.

☆ Being sensitive to receiving signal. Can receive signal more than 10m in concrete without defects

☆ Can supply smooth power for radial energy transducer needless external power.

☆ Standard USB storage with big capacity.

☆ Interior lithium battery supply power for apparatus work more than 6 hours.

☆ Portable, small, light apparatus (1.75Kg).

☆ Extending function for testing thickness of concrete by impacting echo method.

☆ Professional and powerful analysis software on windows system. It can export the data to  Excel or word for advanced analysis

Purpose

Testing of building foundation piles by cross-hole sonic logging

Inspection of concrete defects by ultrasonic method

   such as uncompacted ,cellular, hole area.

Detecting defects of one hole by one trigger two receive.

Testing dynam performance of geotechnical

   investigationrockconcrete etc.

Specification



Technology code for testing of building foundation piles JGJ 106 2003

Technical Specification of Dynamic Pile Tests for Highway Engineering JTG/TF81-01-2004

Technology specification for inspection of concrete defects by ultrasonic method CECS 21  2000

Technical specification for geotechnical investigation method GB500212001







Performance

High efficient testing. Lifting speed is more than 60m/s.( 20 cm distance )

Display the test data graphically. User can watch analyze result directly

Fast and precise Automatic judge the sound parameters. Real-time wave display to assure test efficiency;

Humanized software design. Software design apply to User and construction plant. its help information ensure user handle easily

Linking the rebound apparatus directly. Detecting strength of concrete by ultrasonic-rebound combine method with linking rebound apparatus directlyand get strength of concrete in time. The functions apply for national patent.

Being sensitive to receiving signal. Can receive signal more than 10m in concrete without defects

Can supply smooth power for radial energy transducer needless external power.

Standard USB storage with big capacity.

Interior lithium battery supply power for apparatus work more than 6 hours.

Portable, small, light apparatus (1.75Kg).

Extending function for testing thickness of concrete by impacting echo method.

Professional and powerful analysis software on windows system. It can export the data to  Excel or word for advanced analysis

  Configure



Instrument

Signal Cable

Plane energy transducer

U-Disk



Box staff

box

lithium battery(selectable)





CJ-10

Technical Data


Item

Specifications

Item

Specifications

Main Control Unit

high-performance Embed Computer

Display

640×480High brightness TFT   Panel

Input

Keyboard

storage

1GInternal)+2GU-Disk

interface

USB



Receive Channel

One

Max Sample Data length

64k

Trigger Mode

Continuous Trigger

External Trigger

Trigger VoltageV

651252505001000 selectable

Receive sensitivity

≤30μv

Amplifier gain

82dB

Amplifier bandwidth

5KHz~500 kHz

Sample Periods

0.05μs6.4μs8 grades electable

Sound time accuracy

0.05μs

Amplifier resolution

0.39%

Power

Interior lithium batterywork more than 6 hours

Size

260  mm×185 mm×60 mm

External lithium batterywork more than 6 hoursselect

Weight

1.75 kginclude lithium battery

DC 12V

Temperature

-10℃—+40℃

AC 100V~240V50/60Hz
