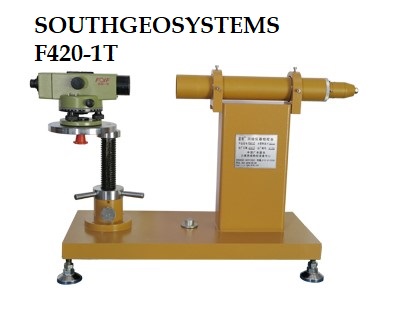

Optical Collimator F420-1T

F420-1 Optical Collimator, F420-1 Collimator Tube, Collimator for theodolites, total stations and for optical levels

Optical Collimator F420-1T.

F420-1T is used for colibrating the autolevels and theodolite.

*Main Technical Parameters of Tubes:

  Tube length: 520mm

  Tube focus: 420mm

  Tube Aperture: 55mm

  Resolution: 3"

  Angle of field of view: 10°20

  Accuracy(Reticle’s division value): 30"

  Magnification: 5.7~7X

  Tubes position:   Horizontal(0°)

  The shortest target of the level tube: 2m

  The far target: ∞

  Power supply for tube: 4.5~6V,2.1W

  Switch power: 1~10A

  Lighting source: cold light (with adjustable intensity), green

 Package: 1unit packed in one wooden case.

                 Wooden case dimension:103x90x56cm

                 Gross weight: 60kgs
