Angle Crack Monitoring Gauge

SOUTHGEOSYSTEMS
cm02-A3012
kg
Add to cart
  • Description
  • Future

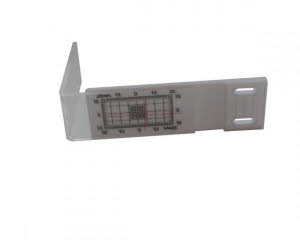

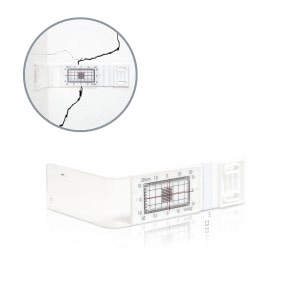

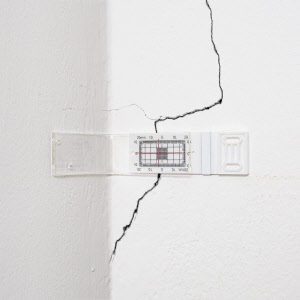

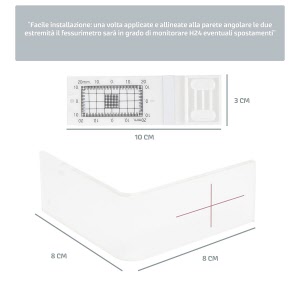

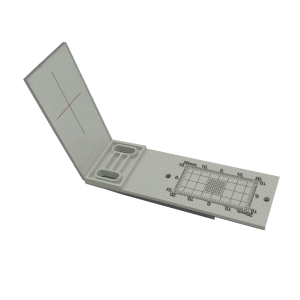

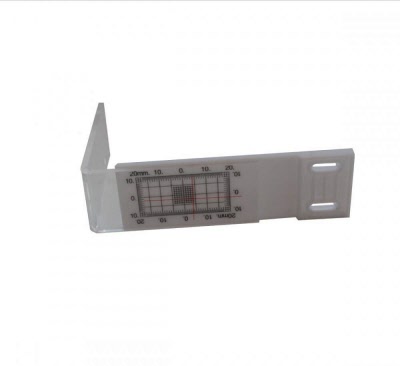

Angle Crack Monitoring Gauge , Standard model for monitoring displacements in two directions (top-bottom/ left-right). Simply stick or glue over the crack. Each further displacement will be shown by a movement of the cross hairs over the measuring scale (40 x 20mm). Dimensions 148 x 30 x 6.5mm. price for 2 pcs

Angle Crack Monitoring Gauge 10/20MM,Cracks occur in most buildings and civil engineering structures. Monitoring the changes in crack width is an important diagnostic technique for determining the cause and specifying the remedial work. price for 2 pcs

Cracks occur in most buildings and civil engineering structures. Monitoring the changes in crack width is an important diagnostic technique for determining the cause and specifying the remedial work.

Features:
•The crack monitor device is made of polycarbonate.
•Measuring movements: horizontal scale +/- 20mm, Vertical scale +/- 10mm

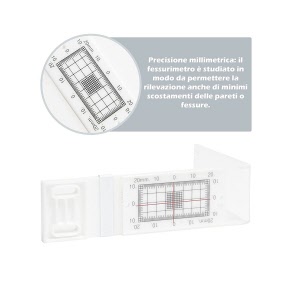

•Reading accuracy of +/- 0.5  mm on grid.
•Fix using screws and adhesive (not included)
•Supplied with Crack Monitoring Record Sheet
