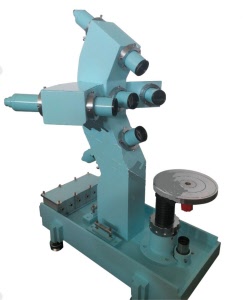

TABLE STYLE COLLIMATOR. 5+1TUBES.ONE TUBE IS UNDER THE PLATFORM FOR PLUMMET COLIBRATION.
F300-5T is for calibration and maintenance of the autolevel,theodolite,total station and laser/optical plummet.
*Main Technical Parameters:
Tube length: 355mm
Tube focus: 300mm
Tube Aperture: 45mm
Angle of field of view: 10°20'
Accuracy(Reticle's division value): 30"
Tubes position: Horizontal(0°,30°,-30°),elevation(30°) and depresion(30°)
Adjusting range of the tubes: Horizontal:≥20´, Vertical:≥20'
The shortest target of the level tube: 2m
The far target: ∞
Lifting range of the lifting platform: ≥200mm
Diameter of the platform: 200mm
Power supply for tube: 4.5~6V,2.1W
Switch power: 1~10A
Lighting source: cold light (with adjustable intensity), green
Shipment package:1Wooden cases,110kgs,
Package dimension: 81x75x115cm
