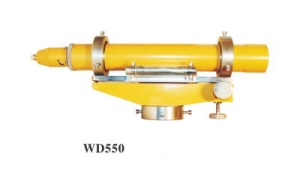

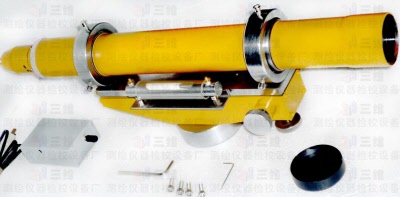

1.1 This model of equipment adopts totally collimator tubes which have the focus of 550 and been designed with plunge angle and collimation horizontal angle.
1.2 The collimator tube is equipped with a reticle with the precision 30", which can significantly improve the inspection precision.
1.3 The collimator tube is equipped with up/down and right/left tuning device, therefore easy for
customers’ usage, installation, commissioning and inspection.
1.4 The collimator tube adopts the latest long-life “cold” light source, which intensity may be
tuned according to customers’ requirements and indoor luminance. The source produces viridescent lights, which are comfortable for seeing.
1.5 On the lifting platform, the threaded rod allowing 26cm lifting range runs smoothly and
stably, and with different configuration, enables customers to operate readily and easily.
1.6 The foundation is designed and installed with 4 leveling wheel, and at the bottom, 4 round pads can increase the ground force-carrying surface and the stability. The whole platform is available for leveling and moving.
1.7 The fixed, integrated instrument center screws on the lifting platform are common in both metric and British systems (two-in-one), and can be combined for checking different foreign
and domestic measuring instruments.
1.8 The equipment is designed with small form factor and looks decent and charming. The total weight is 100kg and the equipment stands very firmly.
