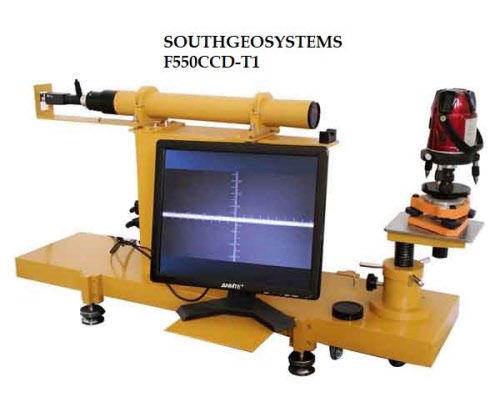

Digital Collimator F550CCD-T1

SOUTHGEOSYSTEMS
F550CCDT1-A2251399
Desde
kg
Incluir en la cesta
  • Descripción
  • Caracteristicas
  • Especificaciones

Digital Collimator F550CCD-T1. This instrument is dedicated to test and adjust the horizontal accuracy of the laser levels. The instrument and be used for professional testing and calibration of the accurracy of the autolevel i angle、autolevel with laser pointing、theodolite and total station with laser pointing、Coaxial precision of the reticles.

SOUTHGEOSYSTEMS DIGITAL COLLIMATOR
This instrument is dedicated to test and adjust the horizontal accuracy of the laser levels. The instrument and be used for professional testing and calibration of the accurracy of the autolevel i angle、autolevel with laser pointing、theodolite and total station with laser pointing、Coaxial precision of the reticles. The instrument has a collimator tube with industry CCD camera,it is equipted with dedicated industrial lens and laser filter. These fetures along with the all metal body make it form a complete and perfect inspection system for the laser levels and other instuments.

Colimador para niveles Laser  SGS FF550CCD - F420CCD

PARRALLE LIGHT TUBE:

 FOCUS(Nominal value )F=550mm

  Effective aperture:57MM

  RESOLUTION:3″

  MIN. VALUE OF THE RETICLE:30″

   ADJUSTABLE RANGE OF THE TUBE:

HORIZONTAL AXIS≥20′VERTICAL AXIS≥20′

 DIGITAL EYEPIECE SYSTEM:

CCD Camera:Industrial camera

            CCD bin size: Light - sensitive chip 1/3inch

Total pixels: 2million (optional)

            Data cable: BNC CABLE

FOCUS:45mm

DIGITAL CCD RESOLUTION:≤0.01mm

LENS TYPE:INDUSTRIAL

LIGHT SOURCE: LED PIONT LIGHT

CCD POWER ADAPTOR: 6V

             LED POWER:3.5v(Light intensity can be fine-tuned)









CCD-En:

SPECIFICATION:

*OPTICAL TUBE:

Tube focus: F550CCD: 550mm; F420CD:420mm
Tube Aperture: F550CCD:55mm; F420CCD:53mm

*DIGITAL EYEPIECE

TYPE OF CCD: Industrial Camera
CCD size: 1/2inch or 1/3inch

PIXEL: 3MILLION

Focus:45mm
Lens type: Telecentric Lens
Light source: LED
CCD Power input: 6v
LED Power input: 3.5V
