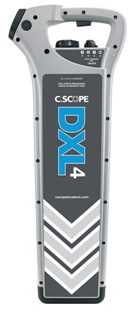

HERRAMIENTA PARA EVITAR CABLES DXL4. El C.Scope DXL4 es una herramienta para evitar cables de doble frecuencia (33+131 kHz) con medición de profundidad. Registro de datos incorporado de serie. Opciones de conectividad Bluetooth™ y seguimiento GPS disponibles. Diseñado para usar con un generador de señales SGA4 o SGV4.

  • Power Mode
  • Radio Mode
  • Generator Mode:
    Simultaneous 33+131kHz
    33kHz signal detection for all purpose tracing and utility avoidance
    + 131kHz for optimum detection of short length, small diameter or unearthed cables.
  • All Scan Mode
  • Accurate Depth Indication
  • Overload Protection
  • Alarm ZoneTM
  • Peak Hold
  • Dynamic Swing Sensor
  • Automatic Daily Self Test
  • Data Logging of all Locator activity
  • Data Transfer by USB. (BluetoothTM option)
  • In-Built GPS position logging (option)
  • Connectivity to Survey level GPS products (options)
  • High Resolution Backlit Liquid Crystal Display
  • No periodic Calibration required
  • Product Validation Certificate available

The DXL4 Cable Avoidance Tools from C.Scope represent a significant advance in cable detecting performance.

Two versions of the DXL4 are available; the DXL4-D which has full data logging capability, and the DXL4-DBG which has full data logging capability, Bluetooth™ connectivity and GPS.

Innovative new features have been introduced and the popular existing modes of detection have been enhanced to allow the DXL4 Cable Avoidance Tool to successfully detect even the hardest to find pipes and cables. Particular attention has been paid to effect better working practices and to minimise the potential for human error to impact on operating performance.

IMPROVED PERFORMANCE ACROSS ALL FOUR DETECTION MODES
The DXL4 Cable Avoidance Tool has improved performance across all modes of detection; Power, Radio, Generator and AllScan, whilst remaining easy to operate ensuring there is only a minimal need for training or retraining.

DEPTH MEASUREMENT
The DXL4 when used alongside an SGA4 or SGV4 Signal Generator will measure and indicate the depth of buried pipes, cables and sondes at the push of a button.

SIMULTANEOUS DUAL-FREQUENCY
The simultaneous dual-frequency 33kHz and 131kHz signal output of the Signal Generators is ideal for maximising the number of buried services that can be energised and then detected, providing a significant improvement in the detection of the smaller diameter or poorly earthed cables.

OVERLOAD PROTECTION
Optimised Locator Sensitivity and Noise Rejection means that the DXL4 can deal with the highest levels of background interference found, allowing even the weakest of signals to be detected successfully.

INTELLIGENT NEW FEATURES:

ALARM ZONE
AlarmZone™ alerts operators to the presence of particularly shallow pipes or cables with the exact trigger depth adjustable by the user to best suit local requirements.

DYNAMIC SWING SENSOR
The Dynamic SwingSensor which gently alerts the operator if the locator is being swung excessively, potentially compromising the accuracy of any locates.

PEAKHOLD
PeakHold allows operators to quickly and confidently pinpoint the exact position of buried services

DATA LOGGING
The DXL4-D and DXL4-DBG Cable Avoidance Tools have full data logging capability. A years worth of data can be stored, in normal usage, on both the Cable Avoidance Tool and the SGV4 Signal Generator.

DATA LOG TRANSFER via USB
This can be conveniently transferred at any time to supervisors for analysis via a USB cable to a PC (or wirelessly via Bluetooth™ from the DBG model only to a PC, tablet or smartphone).

DATA ANALYSIS
C.SCOPE PC ‘TOOLKIT’ and ‘RELAY’ Smartphone App
The free-to-download C.Scope PC Toolkit and C.Scope Relay smartphone App analyses the stored data-logs into charts and graphs that illustrate all aspects of the use allowing training requirements to be quickly identified.

GPS
The DXL4-DBG with in-built GPS allows a record to be kept of exactly where the Locators have been used that can then be viewed in partnership with Google Earth™ or Google Maps™.

Twelve months of GPS data is stored, in normal usage. This can be conveniently transferred at any time via a USB cable to a PC or wirelessly via Bluetooth™ to a PC, tablet or smartphone to supervisors for analysis. The free-to-download C.Scope PC Toolkit and Relay smartphone App analyses the stored data.

Additionally, the Locators can be paired to third party GPS Survey equipment, via the Locators in-built Bluetooth™ facilitating ‘one pass’ underground utility surveys to be undertaken.

CALIBRATION
The DXL4 Cable Avoidance Tools do not require periodic recalibration. A fully Automatic Daily Self Test (ADST) tests and confirms that they are functioning at their optimum level each day.

AUTOMATIC DAILY SELF TEST (ADST)
The DXL4 Cable Avoidance Tools perform an Automatic Daily Self Test (ADST). The ADST checks the functionality of the locator including the receiving aerials each day when it is first switched on. The SGV4 Signal Generator also performs a comprehensive Automatic Daily Self Test (ADST).

At the start of each day of use, a positive Automatic Daily Self Test result gives confirmation to the operator that the kit is working at the optimum level.

The result of this test is recorded and stored on memory within the products in-built data files and can be downloaded onto a PC at any time within the following 12 months*.

PRODUCT VALIDATION CERTIFICATION
These test results can be used to produce a Product Validation Certificate using the C.Scope PC Toolkit. In addition, any results of the Self Test that have been carried out in the last twelve months* are available. The PC Toolkit can also be used to view and print a copy of the original factory Calibration Certificate.

C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal requirements.

HIGH RESOLUTION BACKLIT DIGITAL DISPLAY
The DXL4 has a large, clear and easy to read backlit LCD mounted behind a protective polycarbonate lens. The display indicates detection mode, signal peak level, depth, signal strength and battery condition. It also displays the Automatic Daily Self Test results.

DETACHABLE SPEAKER
The speaker can be easily detached for use in noisy work environments.

ROBUST AND DURABLE CONSTRUCTION
The DXL4s twin wall construction is robust and durable. It also provides IP65 standard protection against dust and water ingress.

SERVICE
A complete covers off service & maintenance package is available for those customers who require it from C.Scope Authorised Service Centres.

The DXL4 comes with a three year Warranty (conditions apply)

DXL4-EN

The DXL4 depth measuring Cable Avoidance Tool is available in two model types:

  • DXL4-D Cable Avoidance Tool
    The C.Scope DXL4-D is a high performance digital simultaneous dual-frequency (33+131kHz) Cable Avoidance Tool with in-built Data Logging.
  • DXL4-DBG Cable Avoidance Tool
    The C.Scope DXL4-DBG is a high performance digital simultaneous dual-frequency (33+131kHz) Cable Avoidance Tool with in-built Data Logging, Bluetooth™ connectivity and GPS tracking.

Both these products are designed for use with an SGA4 or an SGV4 Signal Generator.

Product name
DXL4 Cable Avoidance Tool

Part Nos.

  • DXL4-D
  • DXL4-DBG

Controls

  • On/Off Switch: Spring loaded trigger switch under handle
  • Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; G. Generator Mode; A. AllScan Mode
  • Sensitivity Control
  • Depth Button. Push button for live display of depth

Audio Indication
Removable and user replaceable loudspeaker module

Visual Indication
Multi-segment Liquid Crystal Display indicating:

  • Signal Strength
  • Mode selected
  • AlarmZone™
  • Battery Condition
  • Self Test Indicator
  • GPS signal detected (DXL4-DBG only)
  • Bluetooth™ activated (DXL4-DBG only)
  • Depth Measurement (in Generator Mode)

Data Logging
Internal capacity for storing over 12 months of data (in normal use) logged once per second. Data logged includes:

  • Time/Date
  • Mode
  • Sensitivity Level
  • Received Signal Level
  • Frequency
  • Depth
  • Self Test Result
  • Swing Indicator
  • GPS position (DXL4-DBG only)

Bluetooth™
Bluetooth 2.1

GPS
GPS/QZSS/GLONASS/SBAS

Data Connector
Standard USB Mini B connector in battery compartment. USB 2.0 Compatible

Self Test
Automatic Daily Self Test

Swing Indicator
Audio beep to indicate incorrect use of the Locator

Generator Mode Frequencies
Simultaneous 131,072Hz and 32,768Hz

Construction
Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface

Weight (including batteries)
2.65kg (5 lb 13 oz)

Dimensions
720mm x 280mm x 65mm (28.3” x 11” x 2.5”)

Performance

  • Locate Accuracy: better than 10% of depth
  • Depth Accuracy: ±5% @ 1m (3’3”)
  • Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’)
  • Line Depth Resolution: 0.01m (0.4”)
  • Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type
  • Sonde Depth Resolution: 0.01m (0.4”)

Battery Type
Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)

Battery Life
40 hours intermittent use at 20ºC (68ºF) using alkaline cells

IP Rating
65

Network Rail Approved

Notes
Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Locators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/30/EU (EMC). Compliance has been demonstrated by testing representative samples to the relevant harmonised standards. All C.Scope Locators comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).



Features DXL4-D DXL4-DBG
Power Mode
Radio Mode
Generator / Transmitter Mode
 – 33+131kHz
 – 131kHz
 – 33kHz
 – 8kHz
 – 512Hz
 – 640Hz
AllScan Mode
Accurate Depth Indication
Signal Current Measurement
Overload Protection
AlarmZone™
Peak Hold
Dynamic Swing Sensor
Automatic Daily Self Test
Product Validation Certificate
Data Logging
Data Logging Rate – once per second
2GB Memory
Data Transfer via USB
Data Transfer via Bluetooth™
External Survey Level GPS via Bluetooth™  –
In-Built GPS position logging
High Resolution Backlit Liquid Crystal Display
No Periodic Calibration*
Three Year Warranty**
Batteries*** 8 x AA (LR6) Alkaline or NiMH Rechargeable
IP65



Performance Frequency Sensitivity
@ 1m depth
Detection Depth
(max)
Power 50-400Hz 5mA 3m
Radio 10kHz-30kHz 25µA 2m
Generator 33+131kHz 5µA 5m
AllScan 50Hz-33kHz 100µA 3m
Sonde 33kHz 7m
Rodding Oscillator 33kHz 4.5m
Traceable Rodder – Line 33kHz 3m
Traceable Rodder – Tip / Sonde 33kHz 4m



Depth Measurement Range

Line 0.2m – 3.0m
Sonde 0.25m – 9.9m
Depth Accuracy +/- 5% of depth



GPS

Acquisition Time – Cold Start 30s
Acquisition Time – Hot Start 1s
No. of Channels 56
Accuracy 2m
Supported Systems GPS, SBAS, QZSS, Galileo, GLONASS



Bluetooth™

Version v2.1
Supported Systems Android, PC
Range 30m
Transfer Rate 350kbps



* No Periodic Calibration. The DXL4 Cable Avoidance Tools do not require periodic recalibration. A Product Validation Certificate can be printed using the PC Toolkit. C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal regulations.

** Three Year warranty. Conditions apply.

*** Batteries. The DXL4 Cable Avoidance Tools use 8 x AA LR6 Alkaline or NiMH Rechargeable batteries sealed in a secure, fitted battery compartment. The battery pack will typically provide approximately 40 hours of service depending on use. The battery compartment also houses a spare battery holder
