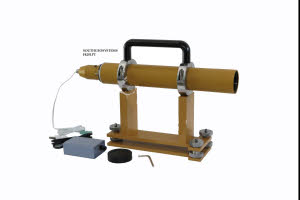

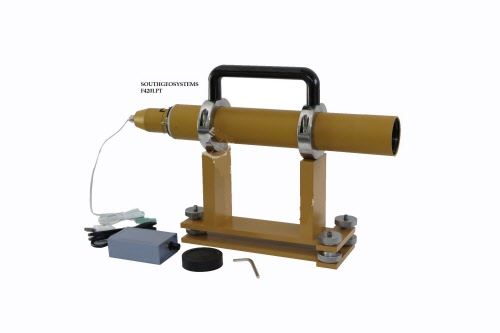

Optical Collimator F420-LPT. Collimator Tube F420LPT is a easy table style collimator

SOUTHGEOSYSTEMS OPTICAL COLLIMATOR

Collimator Tube F420LPT is a easy table style collimator.

Collimator Tube F420LPT is a easy table style collimator.

*Main Technical Parameters of Tubes:

  Tube length: 520mm

  Tube focus: 420mm

  Tube Aperture: 55mm

  Resolution: 3"

  Angle of field of view: 10°20

  Accuracy(Reticle’s division value): 30"

  Magnification: 5.7~7X

  The shortest target of the level tube: 2m

  The far target: ∞

  Power supply for tube: 4.5~6V,2.1W

  Switch power: 1~10A

  Lighting source: cold light (with adjustable intensity), green
