Electronic Theodolite
Electronic Theodolite

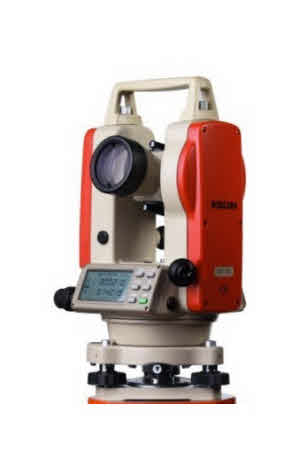

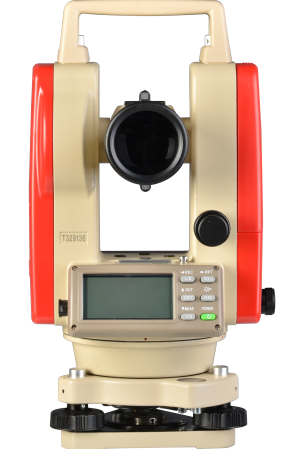

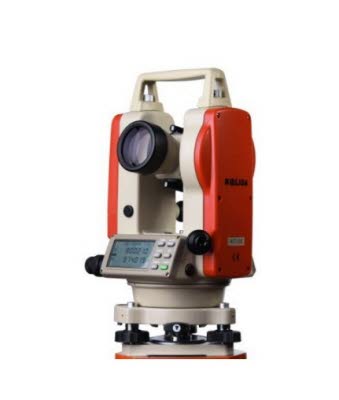

Theodolite Kolida KT-02
KOLIDA
KT02-A225399
ex Shipping kg
Add to cart
  • Description
  • More
  • Specifications

The KT series Theodolites have Smart appearance, reasonable structure, practical functions. They are easy-to-use, and with excellent performance and reliable quality.(Includes: theodolite, tribrach, NiH rechargeable battery, Charger, user manual, and TWO year manufacturer warranty)

KOLIDA
Theodolite Kolida DT
electronic theodolite Kolida
KT-02/05 En



               KT-02

              KT-05

Telescope



Length

157mm

Objective aperture

45mm

Magnification

30x


Erect

Field of view

1 30″

Minimum focus

1.4m

StadiaMultiplication constant

100

Additive constant

0

Angle measurement



Display unit

Degree / Gon / Mil selectable

Display resolutions

1″/5"0.3mgon /1mgon0.001m/0.01m

Accuracy

2″

5″

MeasuringmodeH

Dual

Dual

V

Dual

Single

Automatic compensator

Work range 3'

General



Interface

RS-232C

Sensitivityof levelsPlate level

30″/ 2mm

Circular level

8' / 2mm

Optical plummet, Image:Erect

Magnification:3x,Min. focus:0.5m,Field of view:5°

Operating temperature

（-20 C -+45 C）

Power Supply



Battery

Rechargeable Battery /AA battery

Operating time

10hours

Resolving power

3″
