Tribrach AJ10D3

SOUTHGEOSYSTEMS
AJ10D3-A40038
kg
Add to cart
  • Description
  • More

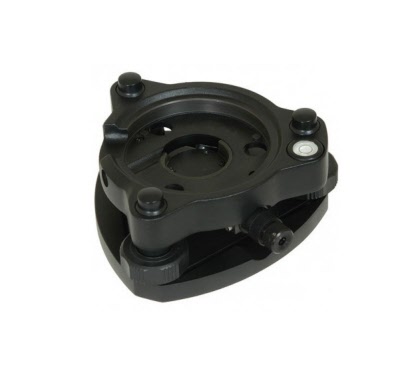

Sokkia/Topcon Tribrachs with optical plummet.

SOUTHGEOSYSTEMS MEASURING INSTRUMENT
Features:
  • Superior price and quality combination
  • Circular leveling sensitivity: 10'/2mm
  • Optical plummet focusing range: 1.5 to 50 ft. (0.5 to 15m)
  • Weight: 1.85 lbs. (.84kg)
  • Colors available: Black, Green, Grey, or Yellow
High-precision, tribrach designed to work with all total stations including the S6 The error in angle measurement (hysteresis) is under 3 cc (60 Ncm torsion moment and 12 kg vertical load) A center line on each of the leveling screws allows the user to balance the lengths of the leveling screws Features a 5/8 x 11 threaded base plate and 8-minute circular vial Includes the shortest-focus distance of 0.35 m to 15 m and an accuracy of 0.5 mm / 1.5 m Features 2X magnification and an erect image Operating temperature for the tribrachs is -20º C to +50º C (-4º F to +122º F) Weighs 1.50 lb (0.70 kg)
