Il nuovo strumento Vertex Laser GEO offre capacità di MEMORIZZAZIONE e ELABORAZIONE, misurazione della distanza - da POCHI CENTIMETRI fino a 700 METRI e più, risultati di ALTA PRECISIONE, alloggiamento rinforzato e MOLTO ROBUSTO, TASTIERA migliorata ed estesa per un uso conveniente e la possibilità di ordinare IMPOSTAZIONI PERSONALIZZATE dello strumento in base all'area di lavoro preferita

FORESTRY INSTRUMENT  PDF Vertex Laser Geo

The Vertex Laser Geo includes ultrasound and laser technology plus GPS and compass

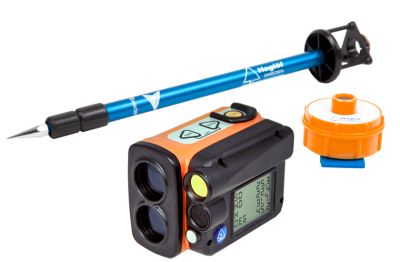

VERTEX LASER GEO

All you need in a Rangefinder-Hypsometer!

Foresters, surveyors, engineers, landscape architects, constructors.. We present new instrument models with extreme functionality - programmable and including GPS and compass. Measure, map, process, store with the Vertex Laser Geo/ Rangefinder/Hypsometer/ Bluetooth/Compass/GPS/Usb 2.0/SSD disk!





  • Features long range measurement with high precision laser and integrated tilt- and compass sensors for accurate 3D measurements. Results are presented in an integrated heads-up display and external, graphic display.
  • Built in GPS-receiver and a 5-position numeric ID-attribute allow you to tag important data with coordinates with a simple key press. Your data is stored on a built in SSD drive and immediately available for further processing when connecting a standard USB 2.0 interface to any PC or Apple computer. No installation routines, converting software or special drivers are needed. Your field data can be opened straight in your favorite GIS- or spreadsheet application. Complex operations such as area measurement, 3D mapping of targets and Trail mapping have integrated functions that also are available to you without any external tools. The 3D Vector function allows you to measure horizontal targets such as canopy width.
  • Incorporated ultrasound technology in the Vertex Laser Geo instrument model - great if your work mainly takes place in the forest. Ultrasound is superior compared to alternative methods, as it can be used in dense forests and where underbrush is thick. The Vertex Laser system works with an ultrasonic transponder. Use in circular sample plots to quickly and accurately determine if a tree is in or out!
  • 3-point, 2-point or 1-point or direct height measuring - choose preferred method to work with in the easy-to-follow menu system. A non-magnification dot sight helps you to identify individual targets such as tree tops and power lines.
  • New functions can be implemented and alternative firmware’s for user specified utilization standard applications can be offered to you. Contact us for details and offer!
  • Built-in Bluetooth V4 Low Energy transceiver enables long range wireless data transfer to your favorite handheld device. The instruments have built-in, long-lasting Li-Ion battery and charging is made with mini USB interface.
VL5-EN

Physical

Dimensions (LxWxH)

93 x 63 x 72mm / 3.7 x 2.5 x 2.8”

Weight

243g / 9oz

Housing and frame material

Glass filled polycarbonate

Shock/Vibration

MIL-STD-810E

Moisture

IP67, NEMA 6

Monopod/tripod mount

1/4” female thread

Operating temperature

Temperature range -20° to +45°C / -4F to 113F

Power

Power consumption

Max 0.9W

Battery duration

Approx. 9000 measurements

Battery type

Chargeable Li-Ion 3.7V

Charging time

Max 3.5h

Charger interface

USB mini B

Charger

Wall charger 110/220AC-5VDC, USB mini B interface

Car charger

Car Cigarette Lighter Adapter 12VDC , USB mini B interface

Cable

USB mini B Male/USB Type A Male, 0.5m

User interface

Buttons

3 multi functional buttons

Buzzer

Yes

Display

Graphic LCD 100x60pixel

Bluetooth

Class 2, Spp (serial profile), pin code 12345

Ir

Haglöf standard format

Data format

Nmea or Ascii

Sight

Led crosshairs 1x magnification

Memory

Capacity

2000 set of data

Memory type

Non volatile

Height

Range

0-999.9m/ft

Resolution

0.1m/ft

Vertical Angle

Units

Degrees 360⁰, Grads 400⁰ and %

Angle range

-55⁰ to +85⁰

Resolution

0.1⁰

Accuracy

0.1⁰

Laser

Min range

1.5ft / 46cm

Max range

2000ft / 700m (depending on target)

Resolution

0.1ft / 0.1m

Accuracy

0.1ft / 4cm

Target modes

First, Last, Strongest

Wavelength

905nm

Divergence

3mrad (1ft beam diameter @ 328ft (30cm @ 100m)

Eye safety classification

Class 1, 7mm (FDA, CFR21) Class 1m (IEC 60825-1:2001)

Ultrasound

Distance (max) to transponder T3

Approx. 30m / 100ft

Distance (max) to T3 with 360° adapter

Approx. 20m / 60ft

Resolution

0.01m / 0.1ft

Accuracy

1% or better when calibrated

Transponder T3

Dimensions

Diameter 70mm / 2.8”

Weight

85g / 5oz (battery included)

Battery

1 x 1,5V AA Alkaline

Power consumption

9mW

Other

Adapter/Spreader

Plastic, weight app. 30g / 1oz

Monopod/plot staff

4-parts, 33-140cm, weight app. 270g / 9.5oz, aluminium/plastic

Case

Aluminum safety case and soft carrying case for measuring instrument
