ET-935 Cost-effective Anemometer

SOUTHGEOSYSTEMS

ET-935 Cost-effective Anemometer

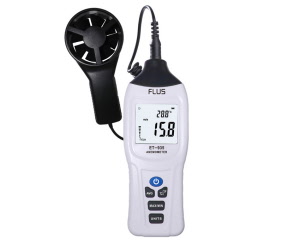

ET-935 Cost-effective Anemometer

1:Circuit: based on fast and high accurate MCU design.
2:High accuracy NTC resistance for air temperature measuring.
3:Super large backlit LCD displays air velocity, temperature and air velocity level at the same time for easy-reading.
4:Air velocity level indication.
5:Low voltage battery indication.
6:MAX/MIN/AVG/HOLD function.

ET-935-EN

Air Velocity Range

-30℃~60℃(-22℉~140℉)

0.4~30 m/s

0.8~58.3 Knots

0.9~67 MPH

78.7~5905 ft/min

1.4~108 Km/h

Air Temp. Accuracy

±1.5℃(±2.7℉)

Air Velocity. Accuracy

±3%±0.1

Resolution

0.1

Sampling rate

1 time per second

Operating temperature

-20℃~60℃(-4℉~140℉)

Operating humidity

<90%RH(Non-condensation)

Storage temperature

-30℃~60℃(-22℉~140℉)

Storage humidity

<80%RH

Air velocity level indication

level 0-16 with analog bar-graph

Measurement average

average reading of the latest 10 records

Maximum / Minimum

MAX/MIN

Reading freezing

HOLD

Area set

0.001 ~9999 m2(0.001~ 9999ft2)

Power Supply

one 9V battery with type of 006P,NEDA1604 or IEC6F22
