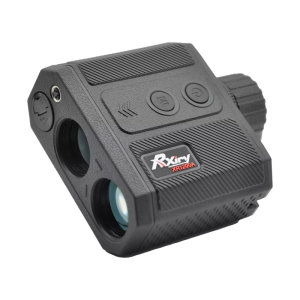

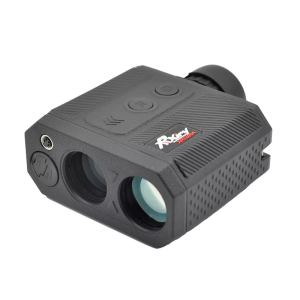

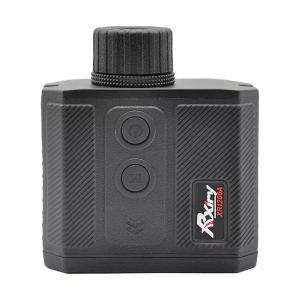

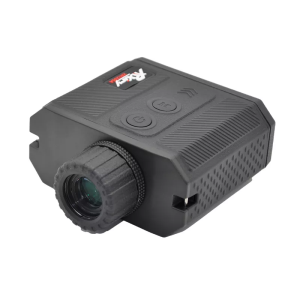

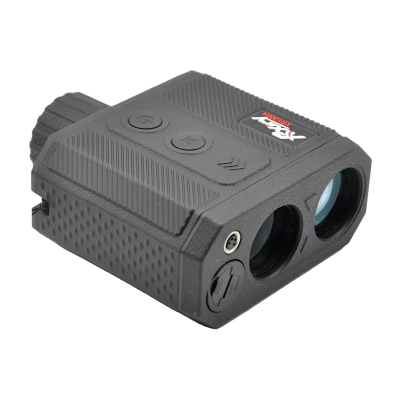

Laser Range Finder XR1200A

SOUTHGEOSYSTEMS
XR1200A-A300400
kg
  • Descrizione
  • Altri Dettagli
  • Specificazioni

Laser Range Finder XR1200A

Video Telemetro Laser

Brand:Rxiry
Survey accuracy:±0.5(<400m)
Measuring range:The general target 0-850m High reflection 0-1200
Application scope:Applicable to electric power, forestry, environmen
Model:XR1200A
Specifications:126.5mm*108.5mm*48mm

Telemetro Laser  XR1200A

XR850-EN

Product model

     XR850 Practical

Accuracy

   General target 0-850m
   High reflection target 0-1200m

Accuracy

   ±0.5m(<400m)

   ±0.8m-1m(400m-1000m)

   ±1m(>1000m)

Inclination

   Range:±90°

Azimuth

   No

ML

   Span measurement between two targets in two dimensional vertical plane

Measure mode

   VD ML(2 points measure height difference)

   HD ML(2 points in vertical measure horizontal distance/slope degree)

   HT(2 points measure height)

   HD HT(3 points measure height)

   HD/SD(1 point measures horizontal distance)

   VD(1 ponint measures vertical distance/inclination)

Target mode

  Standard close and far

Magnification

   7X

Optical display

   LED

Resolution of range

   10cm

Waterproof level

   IP56

Laser wavelengths

   905nm

Laser level

   CLASS 1

Battery type

   CR123A 2-

Battery use time

   16 hours

Size

   126.5mm*108.5mm*48mm

Weight

   400g

Bluetooth

   No

Other configuration

   Recumbent operation /built in RS232 serial port/Rxiry app
